2020 SANTA CRUZ Tallboy V4
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 28 |
| SHOCK SIZE | 190 x 45 |
| TRAVEL MM | 120 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.18 |
| SAG POINT LEVERAGE | 2.85 |
| ENDING LEVERAGE | 2.33 |
| PROGRESSION % | 26.7 |

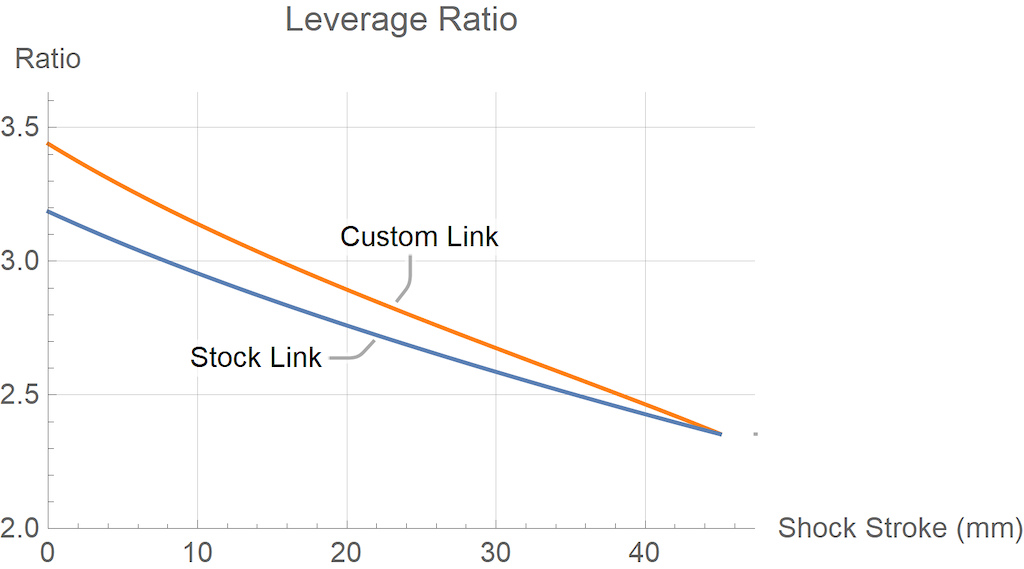

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPS |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 500,550,600,700,750,800, |
| HEAD TUBE ANGLE | 65.7 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 45,50,55,60,65,70, |
| COMMENTS | Cascade link available 32% 3.45-2.3 to 1, narrow tunnel coil diameter issues |
