2020 ZERODE Taniwha Trail
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 30 |
| SHOCK SIZE | 216 x 63 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 22.2 x 8.0 |
| LOWER REDUCER | 22.2 x 8.0 |
| LINKAGE | VP (SLIGHT REGRESSION/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 2.68 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 14.2 |

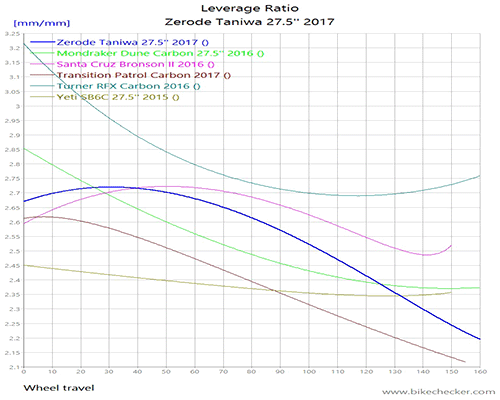

| LEVERAGE CURVE | RP
|

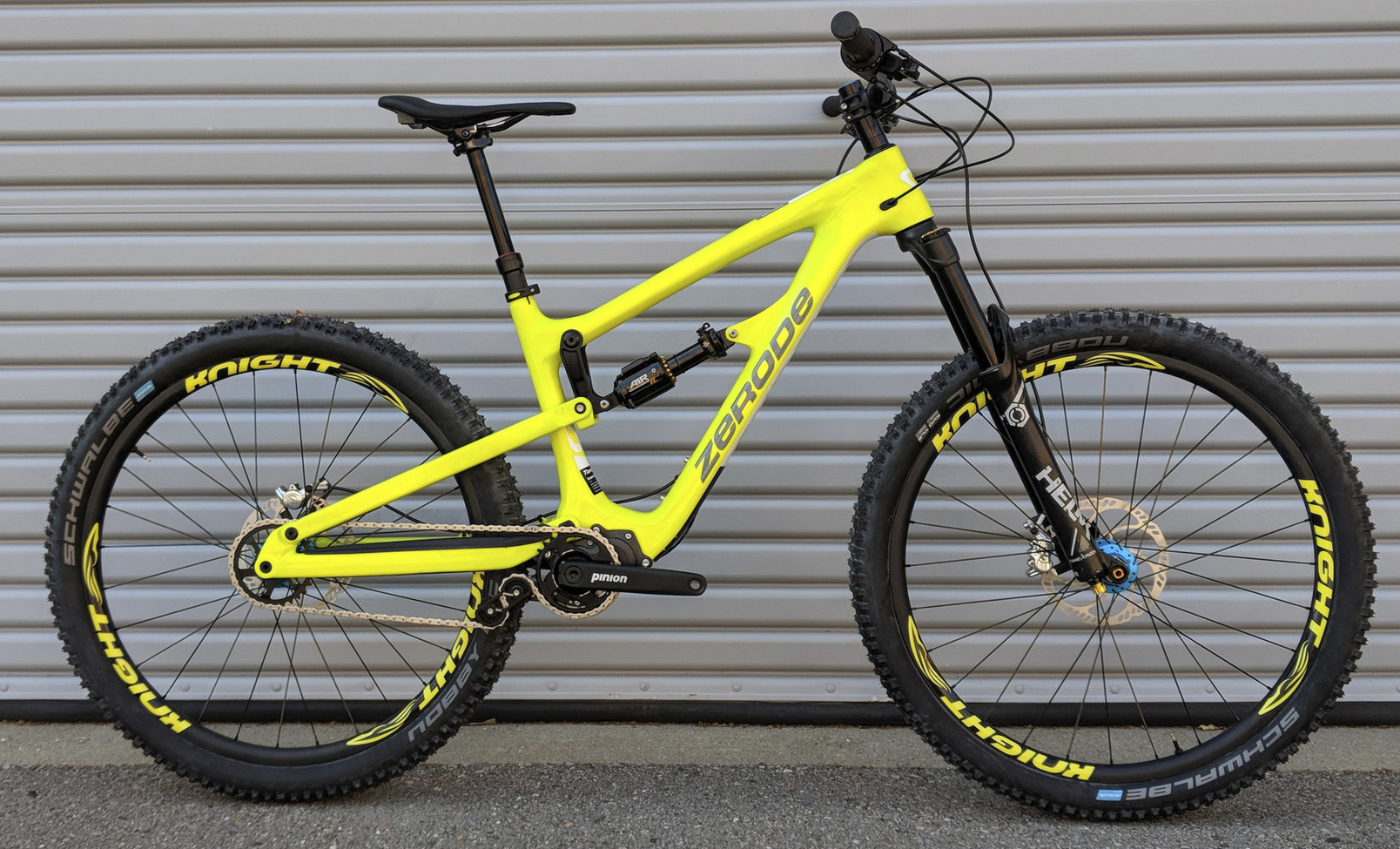

| Installed Pictures | Installed Views |
| SHOCK TUNE | SLIGHTLY PROGRESSIVE RP |
| OEM SHOCK | Cane Creek inline air |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPX2 |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 140 mm version, mullet version |
| COMMENTS |
