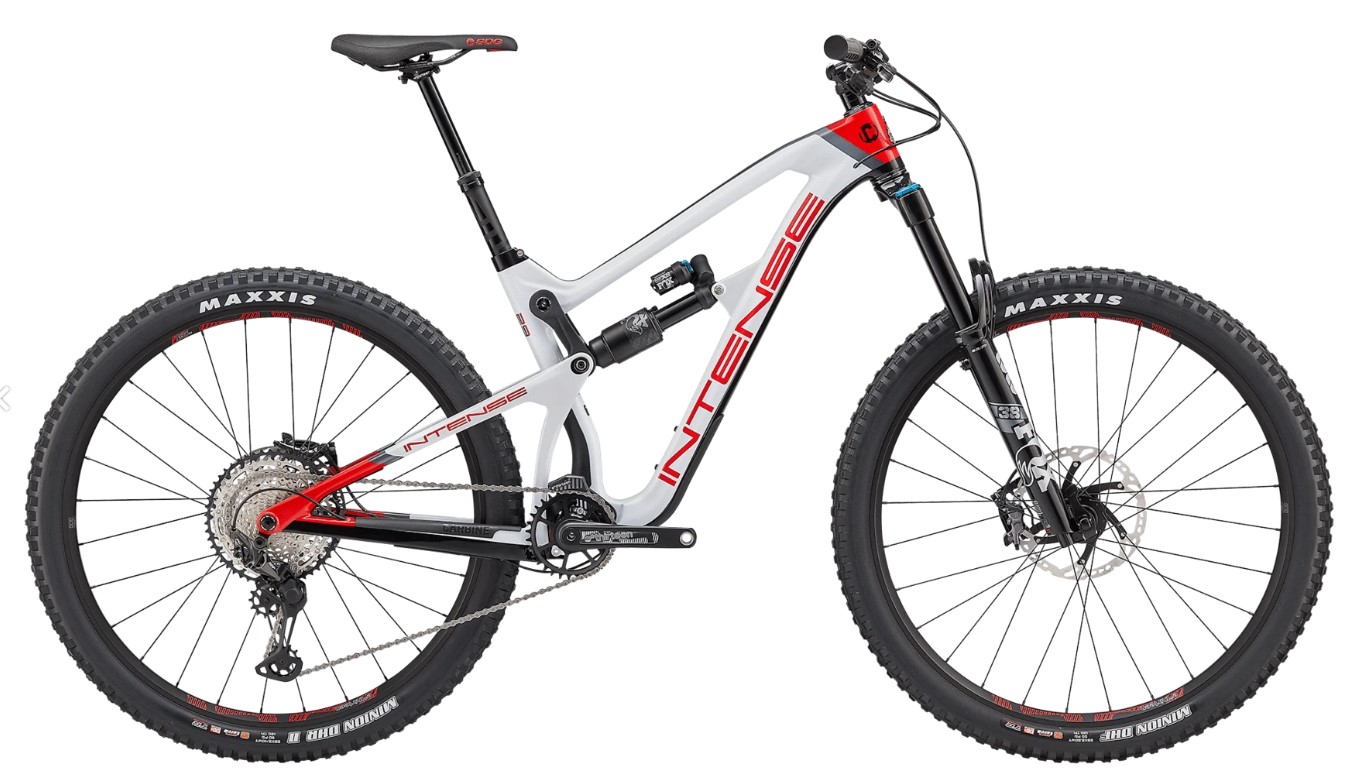

2021 INTENSE Carbine
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 155 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | VP (SLIGHT REGRESSION/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.58 |
| STARTING LEVERAGE | 2.7 |
| SAG POINT LEVERAGE | 2.72 |
| ENDING LEVERAGE | 2.05 |
| PROGRESSION % | 24.1 |

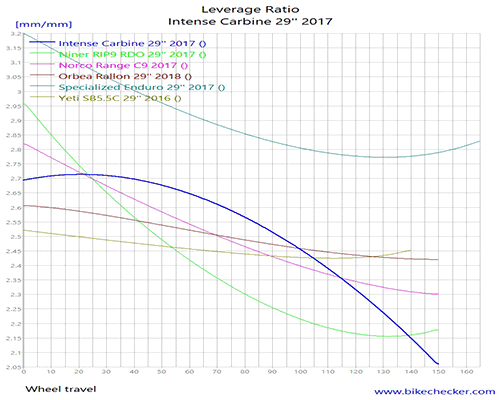

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | RP |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | |
| COMMENTS |
