All data is our best estimate based on the information provided online

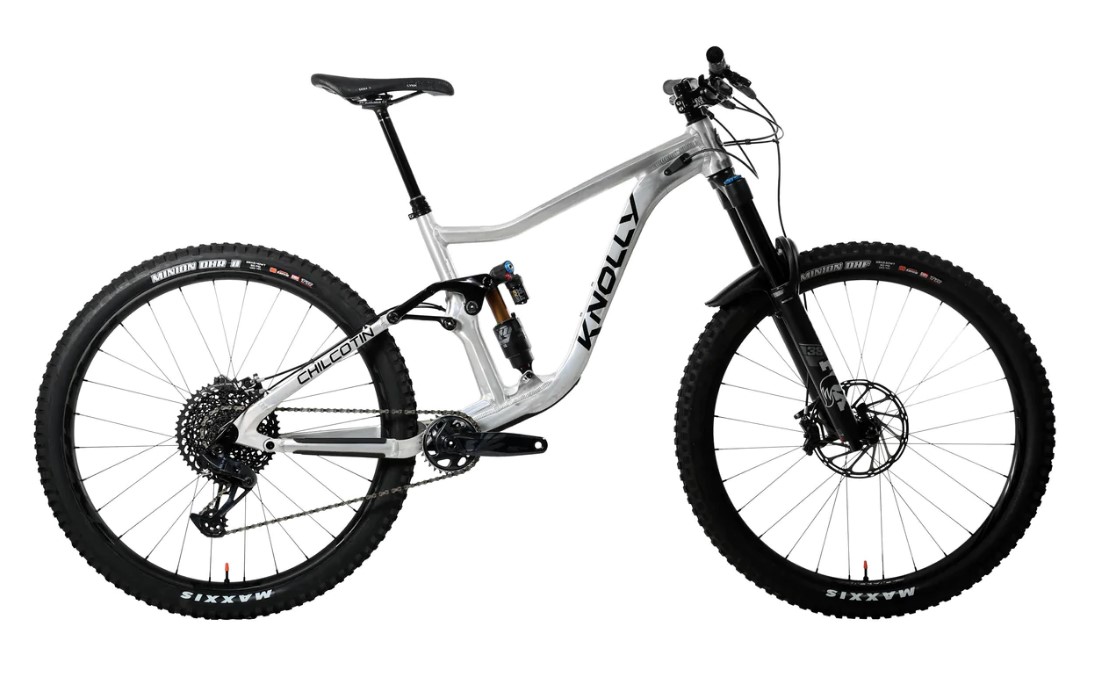

2021 KNOLLY Chilcotin 167

MODEL VERSION YEARS
TIRE SIZE 29
FRAME MATERIAL ALLOY (alum)
BIKE WEIGHT (lbs) 35
SHOCK SIZE 205 x 65,T
TRAVEL MM 167
UPPER REDUCER
LOWER REDUCER
LINKAGE FOUR x FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.57
STARTING LEVERAGE 3.35
SAG POINT LEVERAGE 2.90
ENDING LEVERAGE 2.35
PROGRESSION % 29.9
LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK FOX FLOAT X2
OEM SHOCK ROCKSHOX SUPER DELUXE
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,450,450,500,550,
HEAD TUBE ANGLE 64.5
RECOMMENDED FORK TRAVEL 170
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,45,50,55,
COMMENTS 63.8 HTA for slack position, best estimate for leverage , linear ending?
COMMENTS
