2021 MONDRAKER Crafty R
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 55.5 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 150 |
| UPPER REDUCER | 25.0 x 10.0 |
| LOWER REDUCER | |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.31 |
| STARTING LEVERAGE | 2.72 |
| SAG POINT LEVERAGE | 2.46 |
| ENDING LEVERAGE | 1.98 |
| PROGRESSION % | 27.2 |

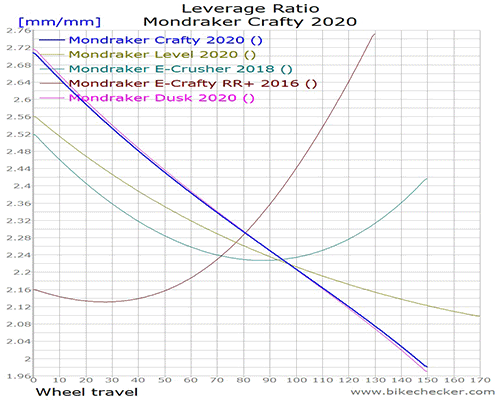

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,450,500,550, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | |
| COMMENTS |
