Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

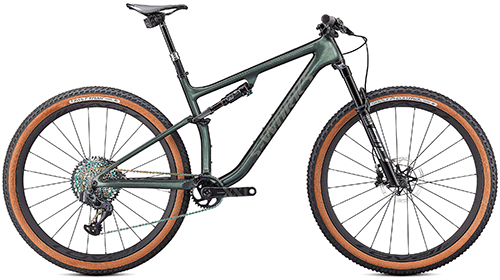

2021 SPECIALIZED EPIC EVO
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 28 |
| SHOCK SIZE | 190 x 40 |
| TRAVEL MM | 110 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | |

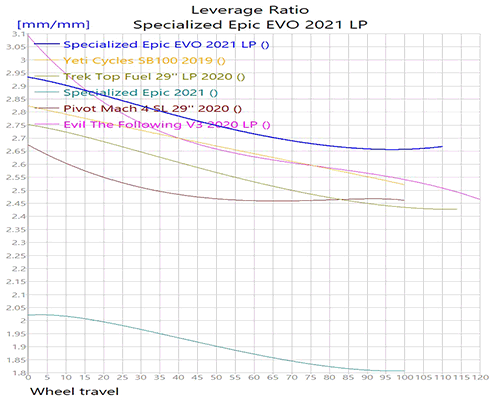

| AVERAGE LEVERAGE | 2.75 |
| STARTING LEVERAGE | 2.95 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.65 |
| PROGRESSION % | 10.2 |

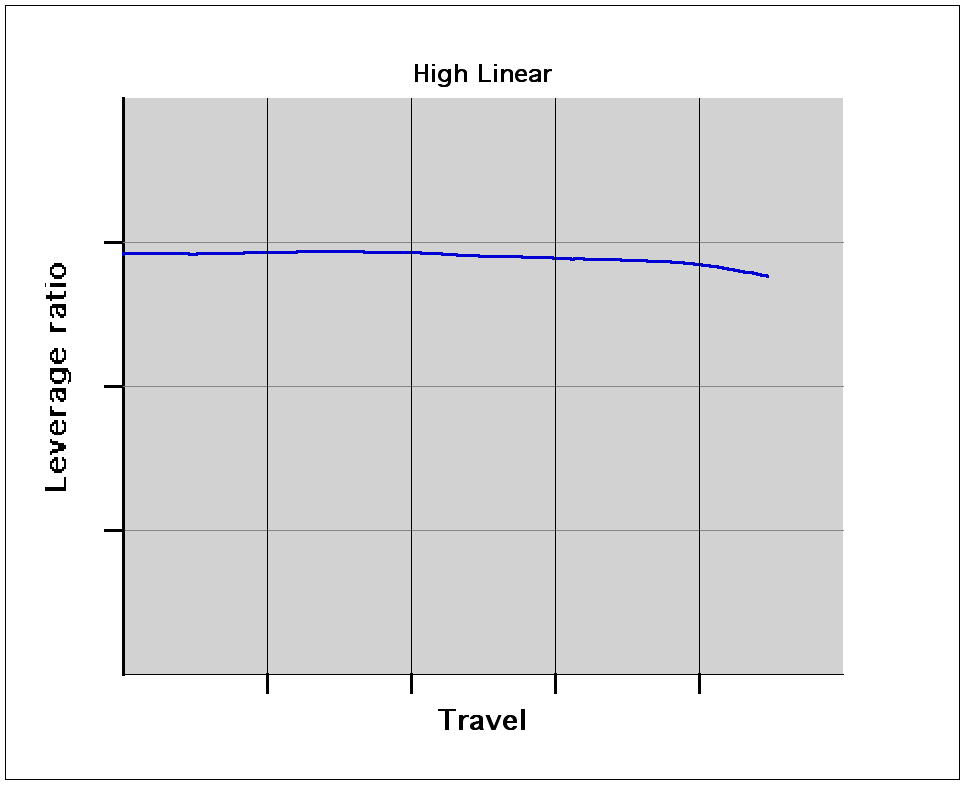

| LEVERAGE CURVE | HL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | HL |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPS |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 120 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 34 STEP-CAST |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX PIKE |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z21 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 55,60,70,75,80,90, |
| COMMENTS | 190 X 45 ALSO FITS 124 MM OF TRAVEL |
| COMMENTS |
