Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

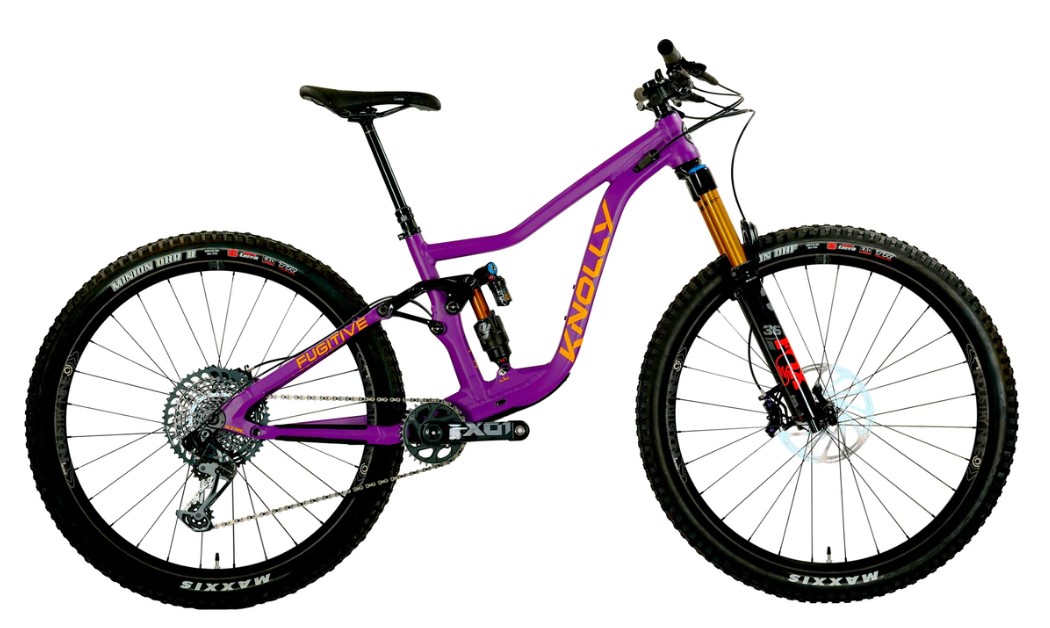

2021 KNOLLY Fugitive 138
| MODEL VERSION YEARS | 2021- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34.3 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 138 |
| UPPER REDUCER | Trunnion x 8.0 |
| LOWER REDUCER | 25.0 x 8.0 |
| LINKAGE | FOUR x FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.51 |
| STARTING LEVERAGE | 2.85 |
| SAG POINT LEVERAGE | 2.50 |
| ENDING LEVERAGE | 2.1 |
| PROGRESSION % | 26.3 |

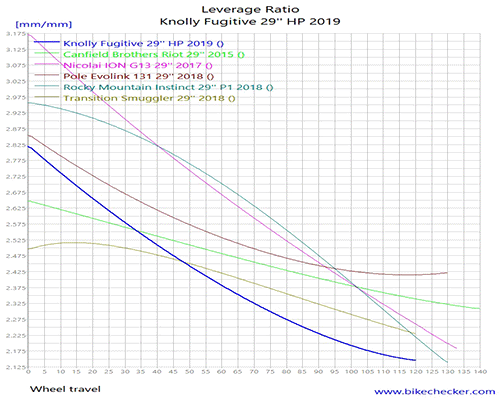

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Extension of Knolly LT, best estimate for leverage |
| COMMENTS |
