All data is our best estimate based on the information provided online
2021 SANTA CRUZ Hightower 2
| MODEL VERSION YEARS | 2021- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 31.8 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 145 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.64 |
| STARTING LEVERAGE | 3.0 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.32 |
| PROGRESSION % | 22.7 |

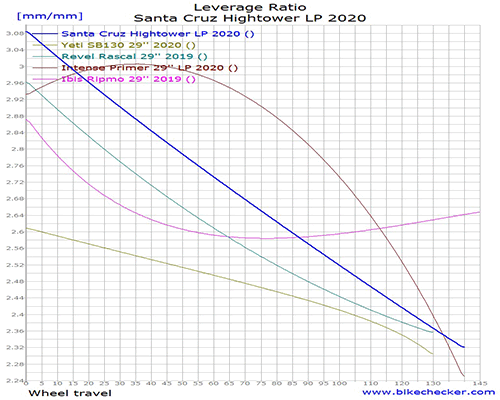

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | 3.0-2.32 to 2, 22.6 % progression, same as 2020 with 55 stroke |
| COMMENTS | SLS springs needed to fit carbon, less than 55 mm OD, aluminum frame is too tight. |
