2021 COMMENCAL Meta AM 29
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 62.5 |
| TRAVEL MM | 165 |
| UPPER REDUCER | 20.0 x 10.0 |
| LOWER REDUCER | none |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.64 |
| STARTING LEVERAGE | 3.02 |
| SAG POINT LEVERAGE | 2.74 |
| ENDING LEVERAGE | 2.55 |
| PROGRESSION % | 15.6 |

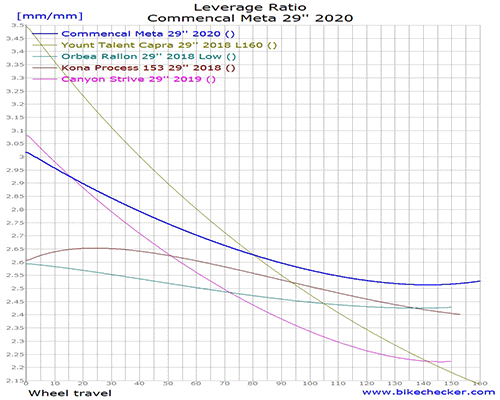

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | ROCKSHOX DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 63.6 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | yoke mount |
| COMMENTS |
