Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

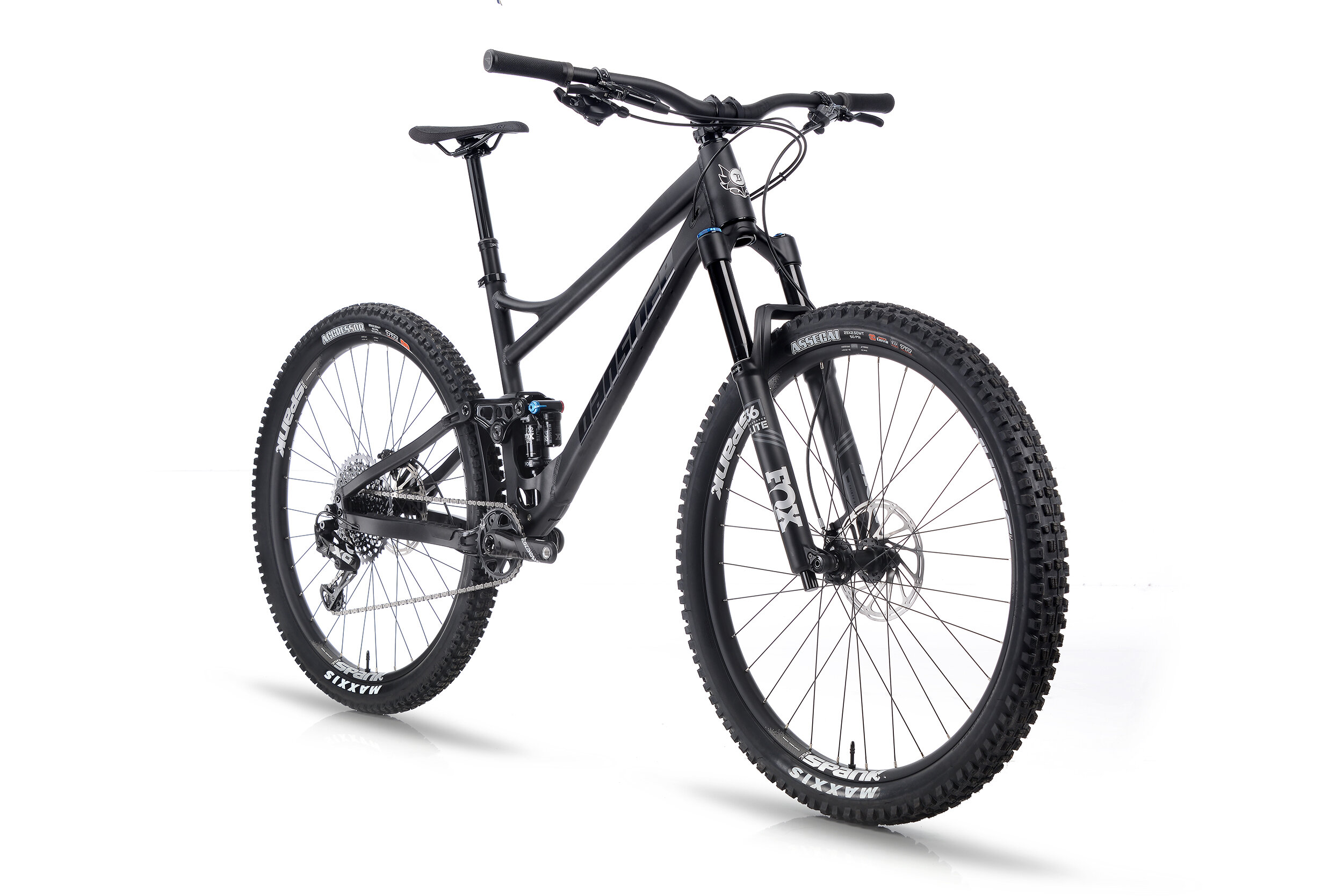

2021 BANSHEE Prime V3
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 135 |
| UPPER REDUCER | |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE/REGRESSIVE) |
| AVERAGE LEVERAGE | 2.45 |
| STARTING LEVERAGE | 2.98 |
| SAG POINT LEVERAGE | 2.44 |
| ENDING LEVERAGE | 2.22 |
| PROGRESSION % | 25.5 |

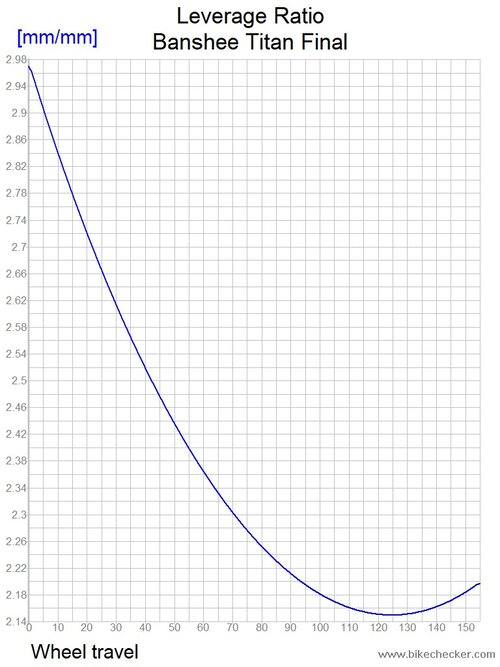

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | FOX FLOAT DPX2 |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 66.0 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | similar to Titan leverage |
| COMMENTS | 65.5 low angle |
