Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

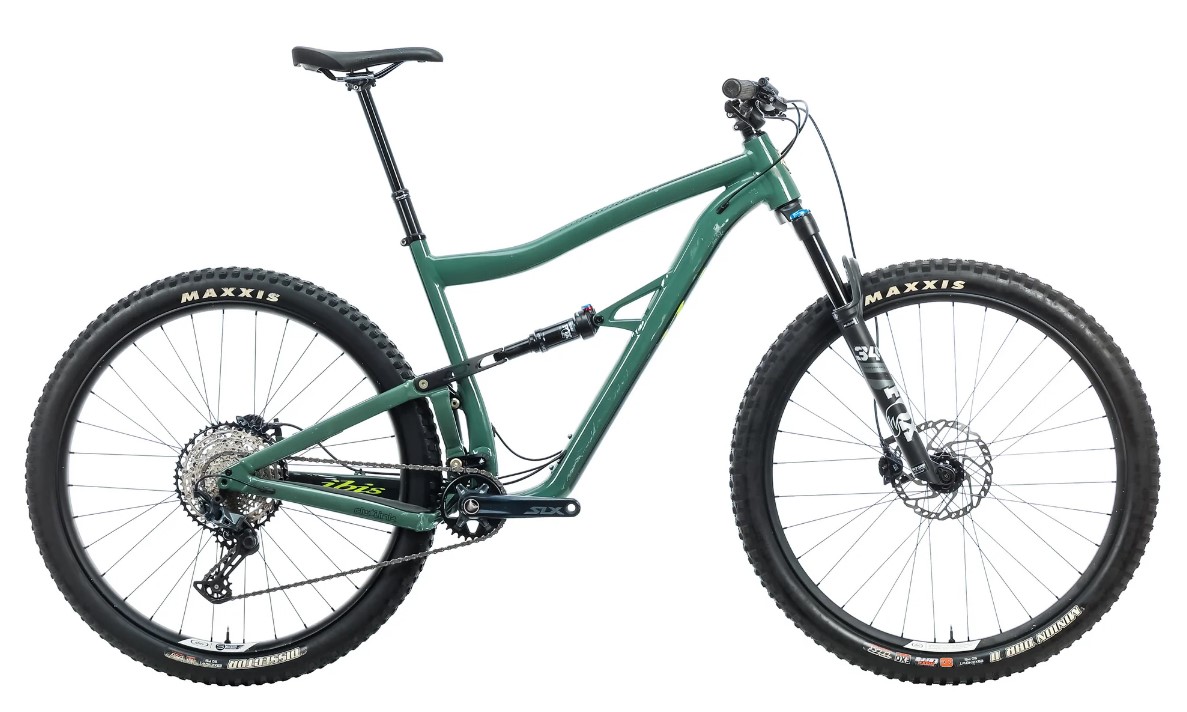

2021 IBIS Ripley AF
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 190 x 45 |
| TRAVEL MM | 120 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 15.2 x 8.0 |
| LINKAGE | DW (SPLIT PROGRESSIION) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.68 |
| ENDING LEVERAGE | 2.52 |
| PROGRESSION % | 13.1 |

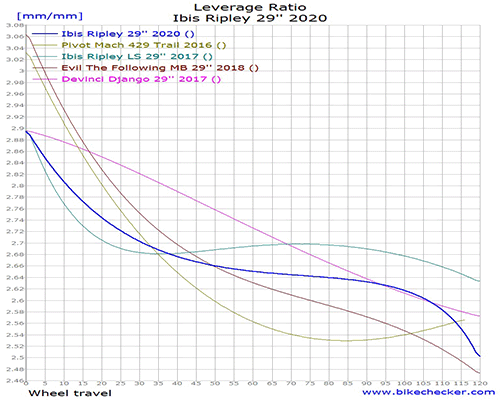

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/linear/progressive PBLE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | FOX 34 FLOAT 29 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 34 FLOAT 29 |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 45,50,55,60,65,75, |
| COMMENTS | 2021-2022, Aluminum Frame, Yoke system, V5 |
| COMMENTS |
