All data is our best estimate based on the information provided online

2021 ORBEA Rise

MODEL VERSION YEARS 2021-2023
TIRE SIZE 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 44
SHOCK SIZE 210 x 55
TRAVEL MM 140
UPPER REDUCER
LOWER REDUCER
LINKAGE YOKE FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.55
STARTING LEVERAGE 2.9
SAG POINT LEVERAGE 2.64
ENDING LEVERAGE 2.28
PROGRESSION % 21.4

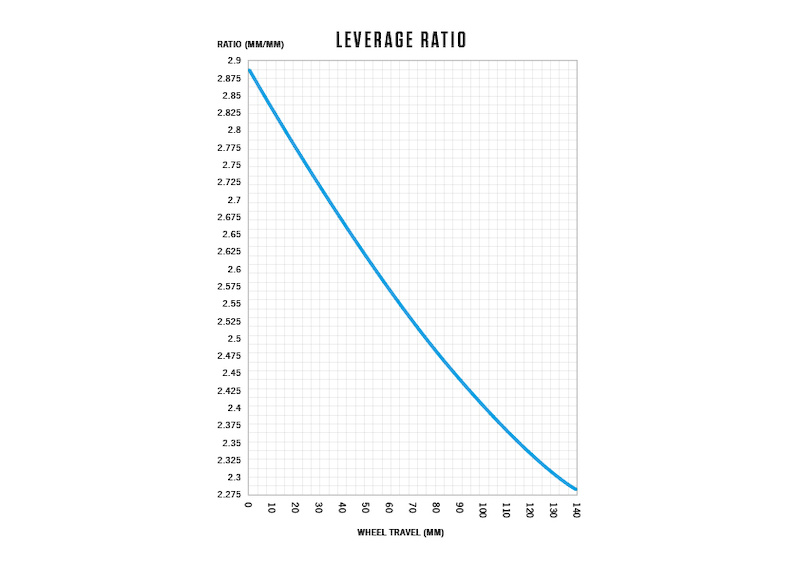

LEVERAGE CURVE PL

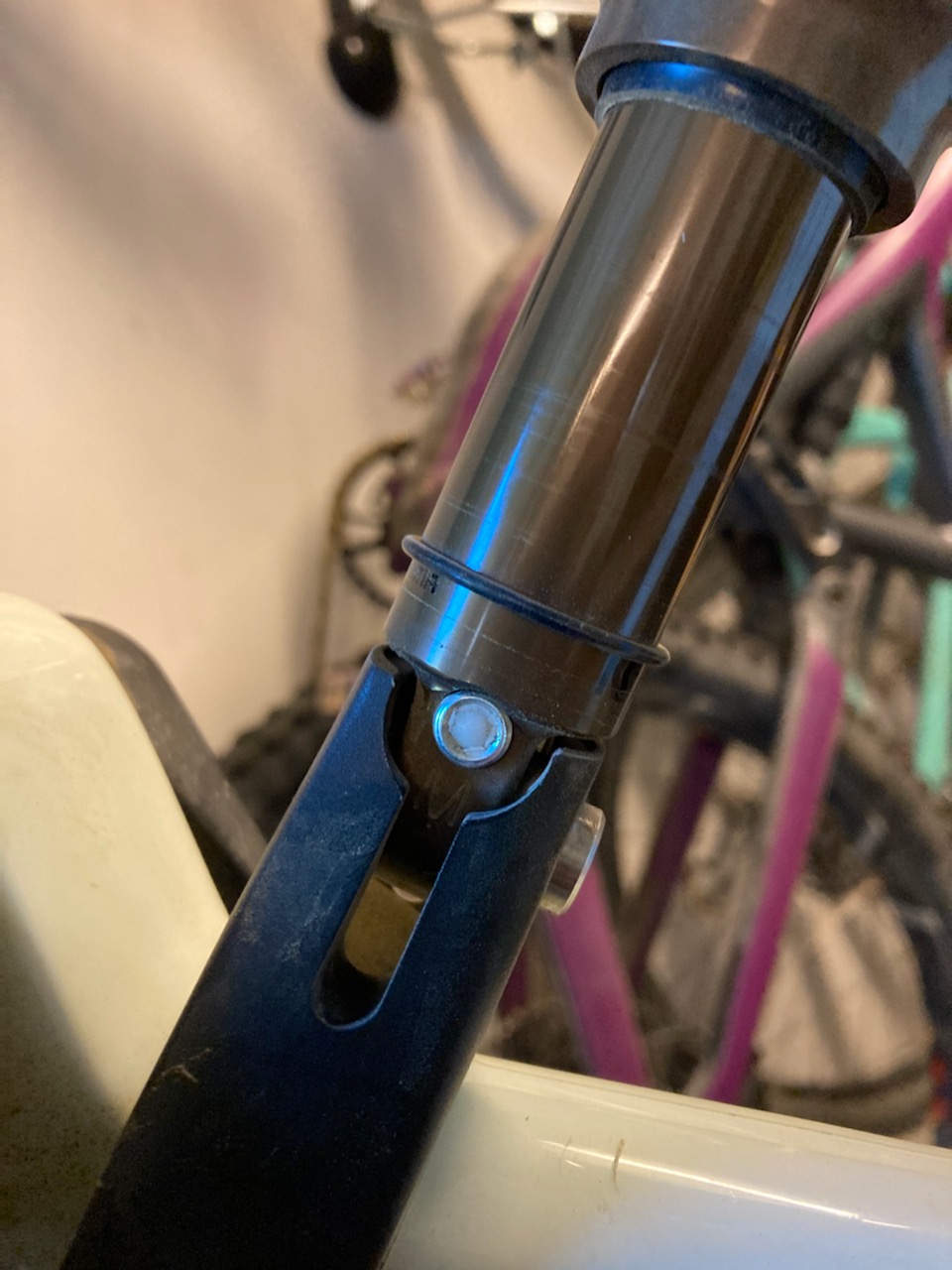

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK FOX FLOAT DPX2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 450,500,550,600,650,700,
HEAD TUBE ANGLE 65.5
RECOMMENDED FORK TRAVEL 150
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 40,45,50,55,60,65,
COMMENTS Yoke Mount needs chrome steel shaft upgrade, 44 lbs H30,
COMMENTS spring clearance with top tube (sm/med) when compressed.
