All data is our best estimate based on the information provided online

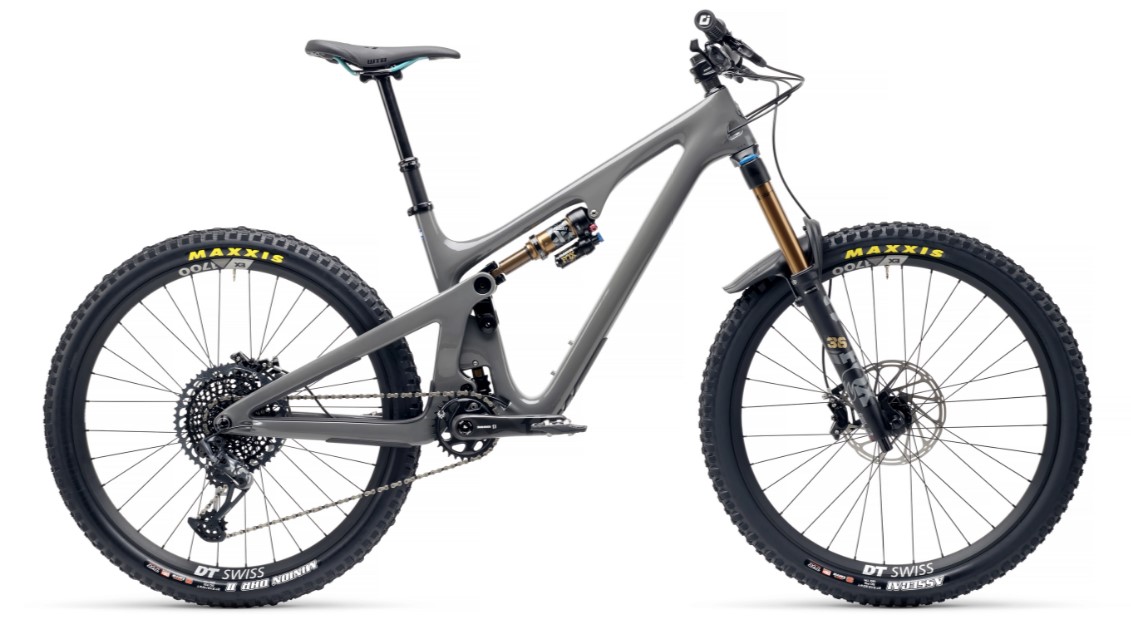

2021 YETI SB140

MODEL VERSION YEARS
TIRE SIZE 27.5
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 27
SHOCK SIZE 210 x 55
TRAVEL MM 140
UPPER REDUCER 36.0 x 8.0
LOWER REDUCER 12.7 fitted x 8.0
LINKAGE SLIDING PIVOT (LOW LEVERAGE LINEAR)
AVERAGE LEVERAGE 2.67
STARTING LEVERAGE 2.68
SAG POINT LEVERAGE 2.62
ENDING LEVERAGE 2.32
PROGRESSION % 13.43
LEVERAGE CURVE LP

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE LP
OEM SHOCK FOX FLOAT X
OEM SHOCK FOX FLOAT DPS
UPGRADE OPTION BOMBER CR
UPGRADE OPTION FOX FLOAT DPS PERFORMANCE
UPGRADE OPTION FOX FLOAT X

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 Not Coil Compatible
HEAD TUBE ANGLE 65.5
RECOMMENDED FORK TRAVEL 150
OEM FORK FOX 36 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING BOMBER Z1 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING FOX 36 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX LYRIK HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,50,55,60,
COMMENTS special pin from lower from yeti, Switch Infinity Link,33 % sag, 160 mm fork option
COMMENTS Cascade link 20%, 145 travel, 65 degree HTA
