Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2021 YETI SB150
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 36.0 x 8.0 |
| LOWER REDUCER | 12.7 fitted x 8.0 |
| LINKAGE | SLIDING PIVOT (LOW LEVERAGE LINEAR) |
| AVERAGE LEVERAGE | 2.50 |
| STARTING LEVERAGE | 2.68 |
| SAG POINT LEVERAGE | 2.58 |
| ENDING LEVERAGE | 2.2 |
| PROGRESSION % | 17.9 |

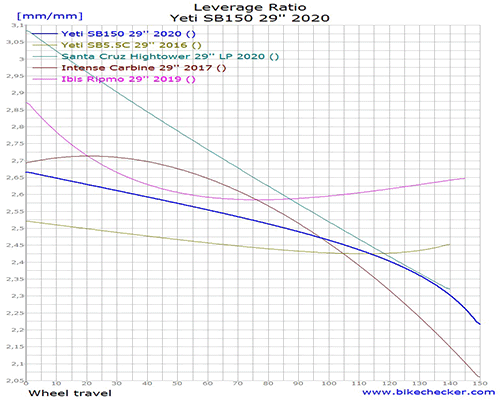

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | special pin for lower from yeti, Switch Infinity Link |
| COMMENTS | Cascade link 26%, 155 travel |
