Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2021 CANYON Spectral CF 8
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.50 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.66 |
| ENDING LEVERAGE | 2.18 |
| PROGRESSION % | 29.7 |

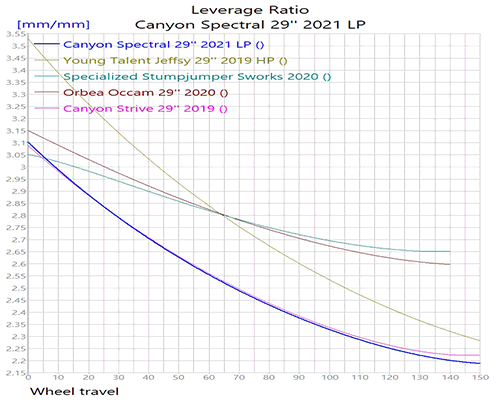

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | small is 140 travel |
| COMMENTS | Flip chip high or low |
