Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2021 SPECIALIZED Stumpjumper Evo Cc
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 158 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE HORST LINK (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.87 |
| STARTING LEVERAGE | 3.43 |
| SAG POINT LEVERAGE | 3.05 |
| ENDING LEVERAGE | 2.53 |
| PROGRESSION % | 26.24 |

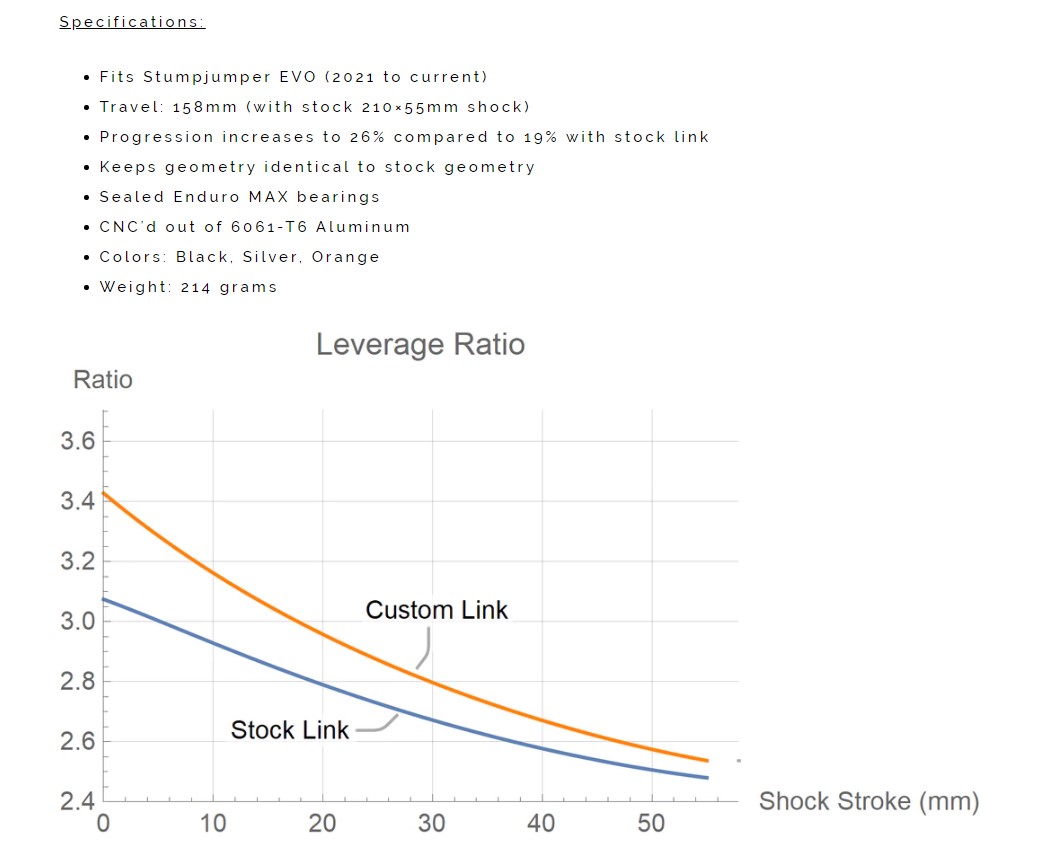

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR HPL |
| OEM SHOCK | FOX DPX2 |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | Fox DHX |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,750, |
| HEAD TUBE ANGLE | 65 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Cascade Lt Link, Chrome steel shaft recommended for riders over 200 lbs |
| COMMENTS | 63-65.5 adjustable head angle |
