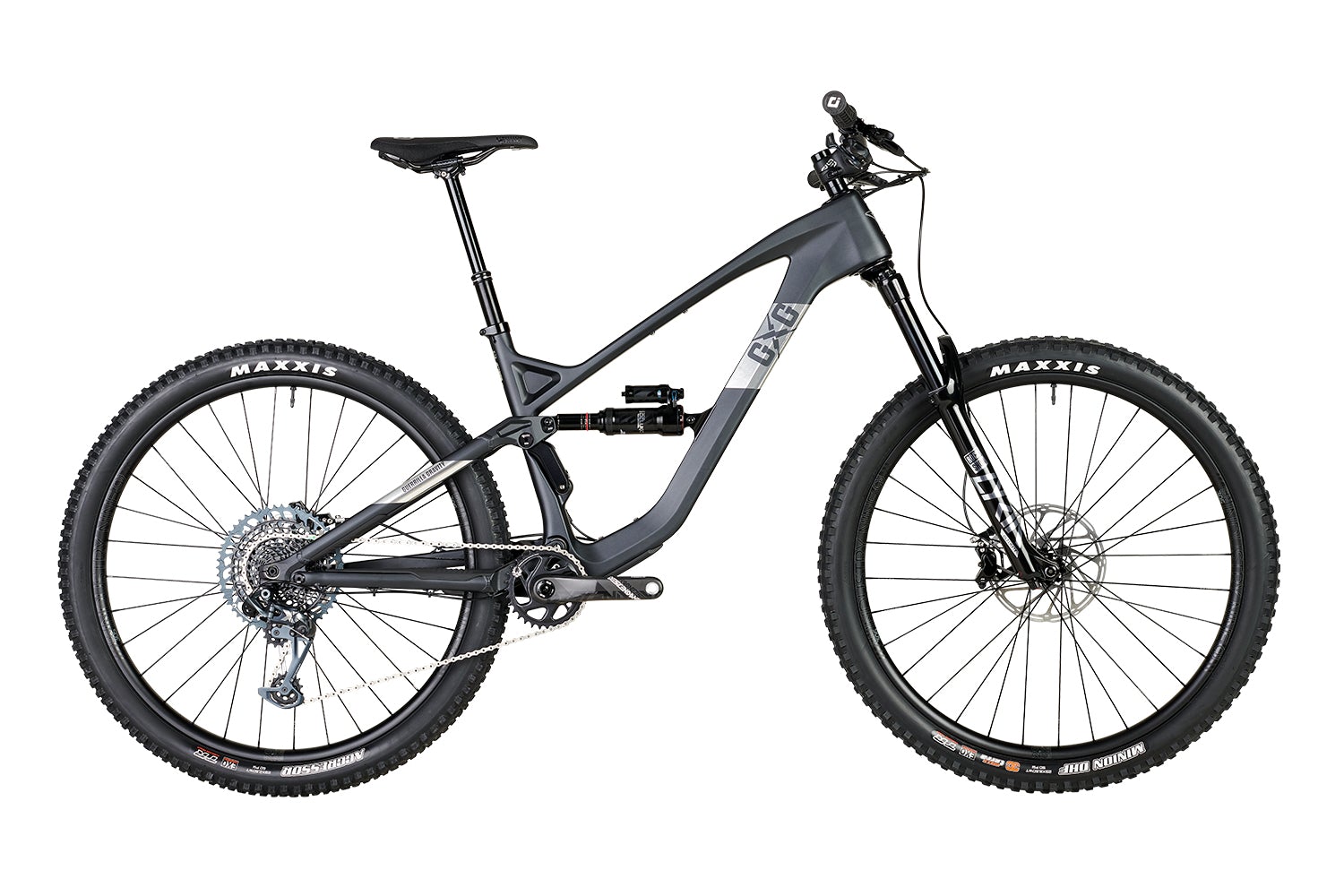

2021 GUERILLA GRAVITY The Smash
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 145 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 35.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.42 |
| STARTING LEVERAGE | 2.75 |
| SAG POINT LEVERAGE | 2.5 |
| ENDING LEVERAGE | 2.2 |
| PROGRESSION % | 20.0 |
| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,550, |
| HEAD TUBE ANGLE | 64.7 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2016-2021 plush position, 2.42 average leverage |
| COMMENTS |
