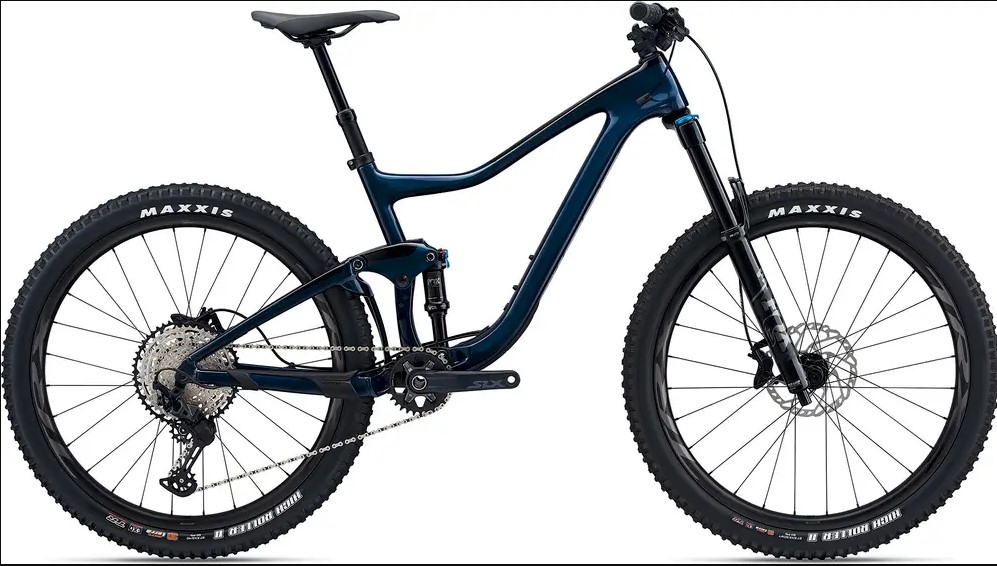

2021 GIANT Trance Advanced 27.5
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 30 |
| SHOCK SIZE | 185 x 52.5,T |
| TRAVEL MM | 140 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.05 |
| SAG POINT LEVERAGE | 2.86 |
| ENDING LEVERAGE | 2.6 |
| PROGRESSION % | 14.8 |

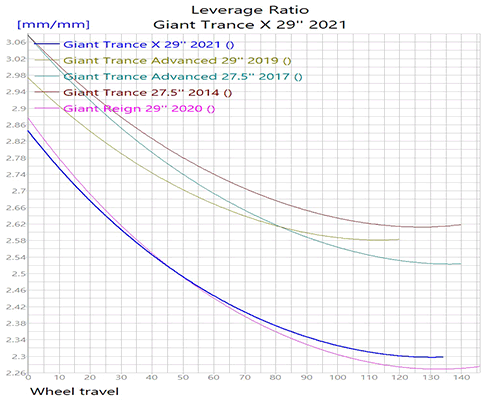

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PBLE |
| OEM SHOCK | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | FOX FLOAT DPS |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,55,60, |
| COMMENTS | best estimate leverage |
| COMMENTS |
