Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2021 SPECIALIZED Turbo Levo SL
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 20.0 x 6.0 |
| LOWER REDUCER | flip chip |
| LINKAGE | YOKE HORST LINK (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | |
| ENDING LEVERAGE | 2.7 |
| PROGRESSION % | 14.29 |

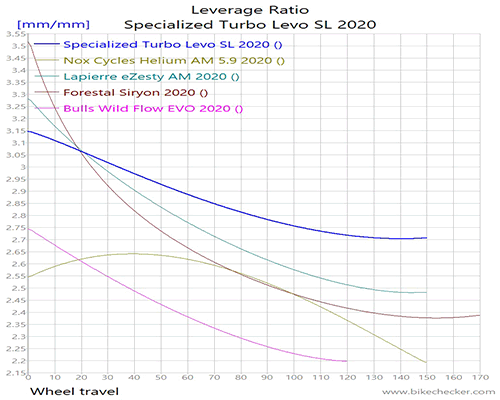

| LEVERAGE CURVE |
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 62.5 |
| RECOMMENDED FORK TRAVEL | |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | |
| COMMENTS | |
| COMMENTS |
