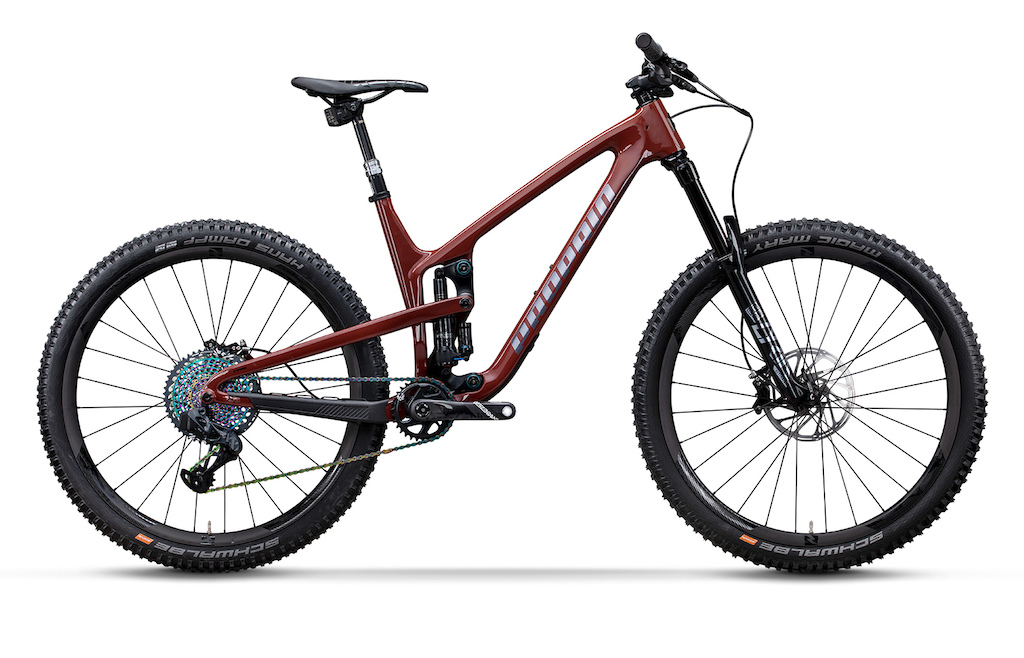

2021 PROPAIN Tyee CF
| MODEL VERSION YEARS | 2020-2022 |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 35.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.91 |
| STARTING LEVERAGE | 3.28 |
| SAG POINT LEVERAGE | 3.08 |
| ENDING LEVERAGE | 2.39 |
| PROGRESSION % | 27.1 |

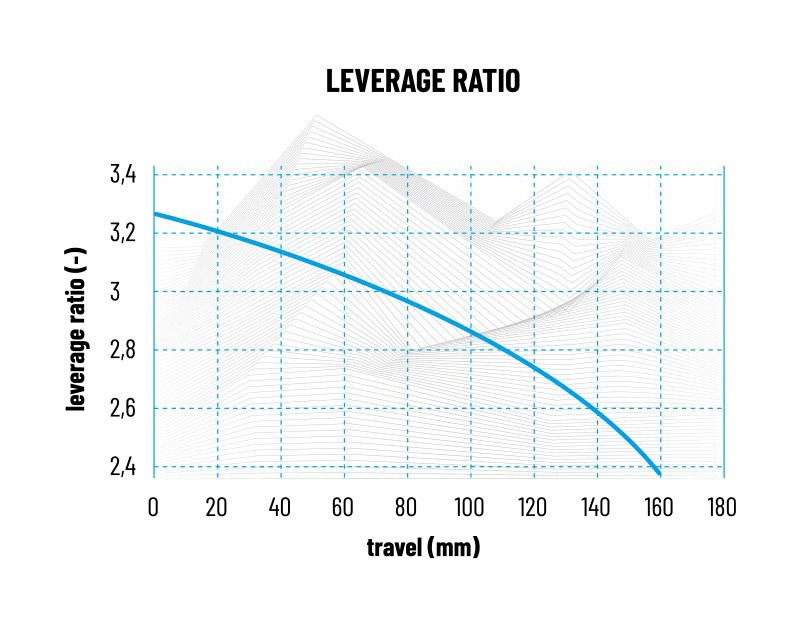

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 450,500,550,650,700,750, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX LYRIK DEBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | shock upside down |
| COMMENTS |
