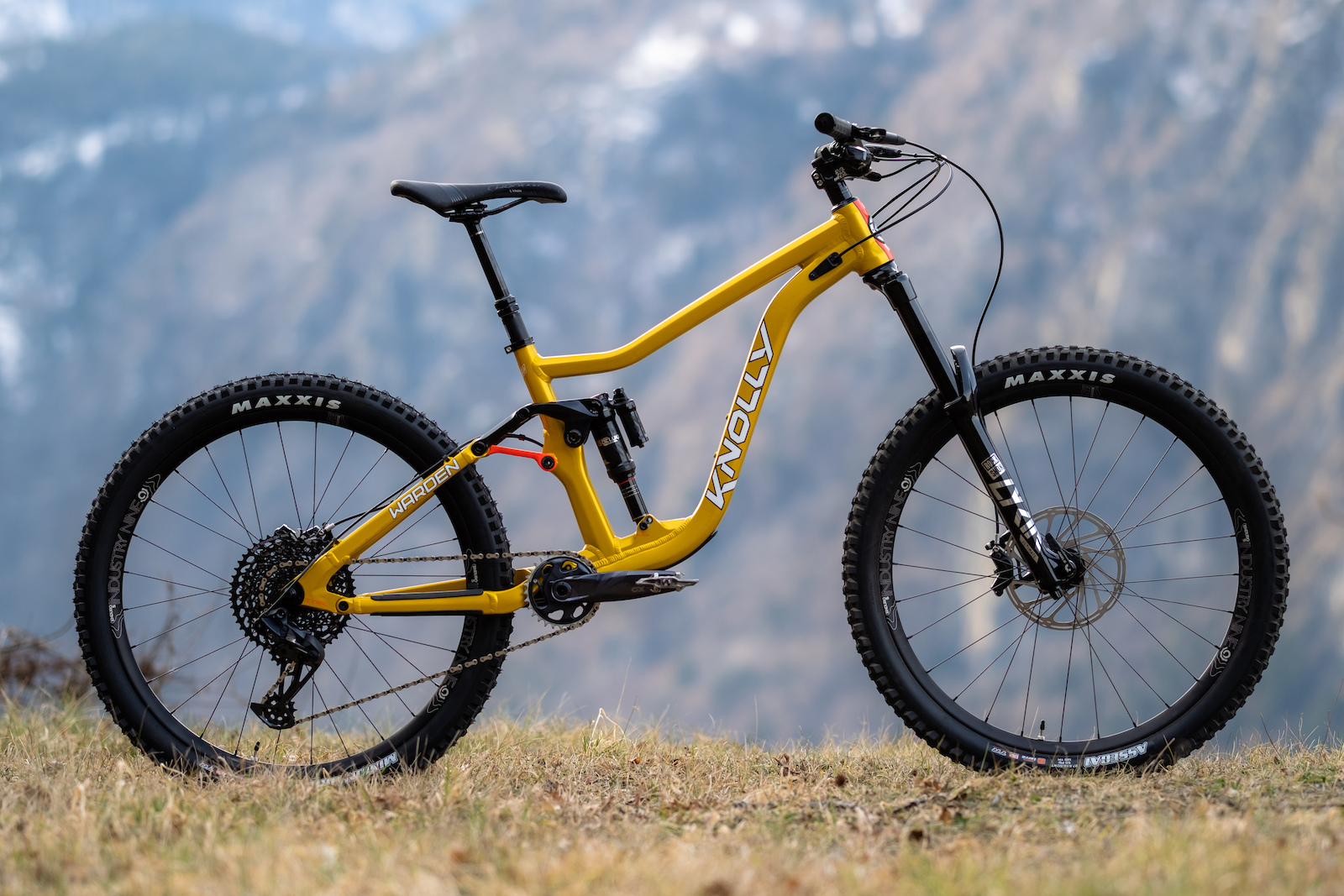

2021 KNOLLY Warden LT 168
| MODEL VERSION YEARS | 2020- |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 62.5,T |
| TRAVEL MM | 168 |
| UPPER REDUCER | Trunnion x 10 |
| LOWER REDUCER | 25.0 x 8.0 |
| LINKAGE | FOUR X FOUR BAR (PROGRESSIVE/REGRESSIVE) |
| AVERAGE LEVERAGE | 2.69 |
| STARTING LEVERAGE | 3.2 |
| SAG POINT LEVERAGE | 2.78 |
| ENDING LEVERAGE | 2.23 |
| PROGRESSION % | 30.3 |
| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PBLE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 65.3 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | netural 3.0 to 1, 30% and slack positions 3.2 to 1 28.5%, longer stroke 65 mm creates 175 mm travel |
