Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

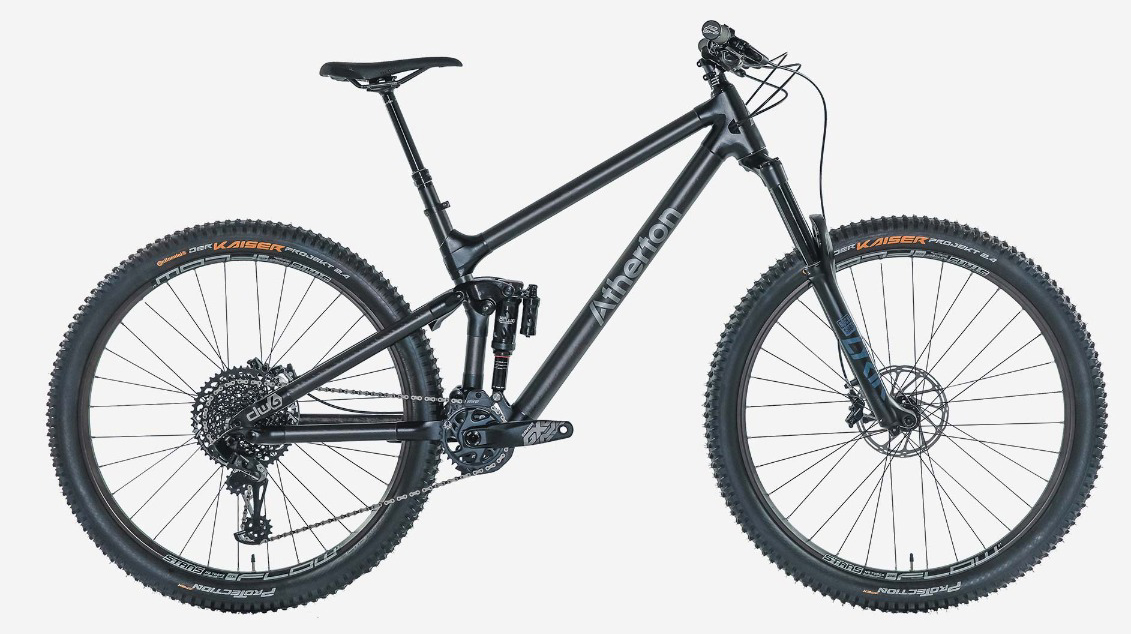

2022 ATHERTON AM.150
| MODEL VERSION YEARS | 2022- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 33 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 150 |
| UPPER REDUCER | Trunnion x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | DW (6 SYSTEM) |
| AVERAGE LEVERAGE | 2.50 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 28.6 |
| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Carbon tubes and Titanium lugs, best estimate leverage |
| COMMENTS |
