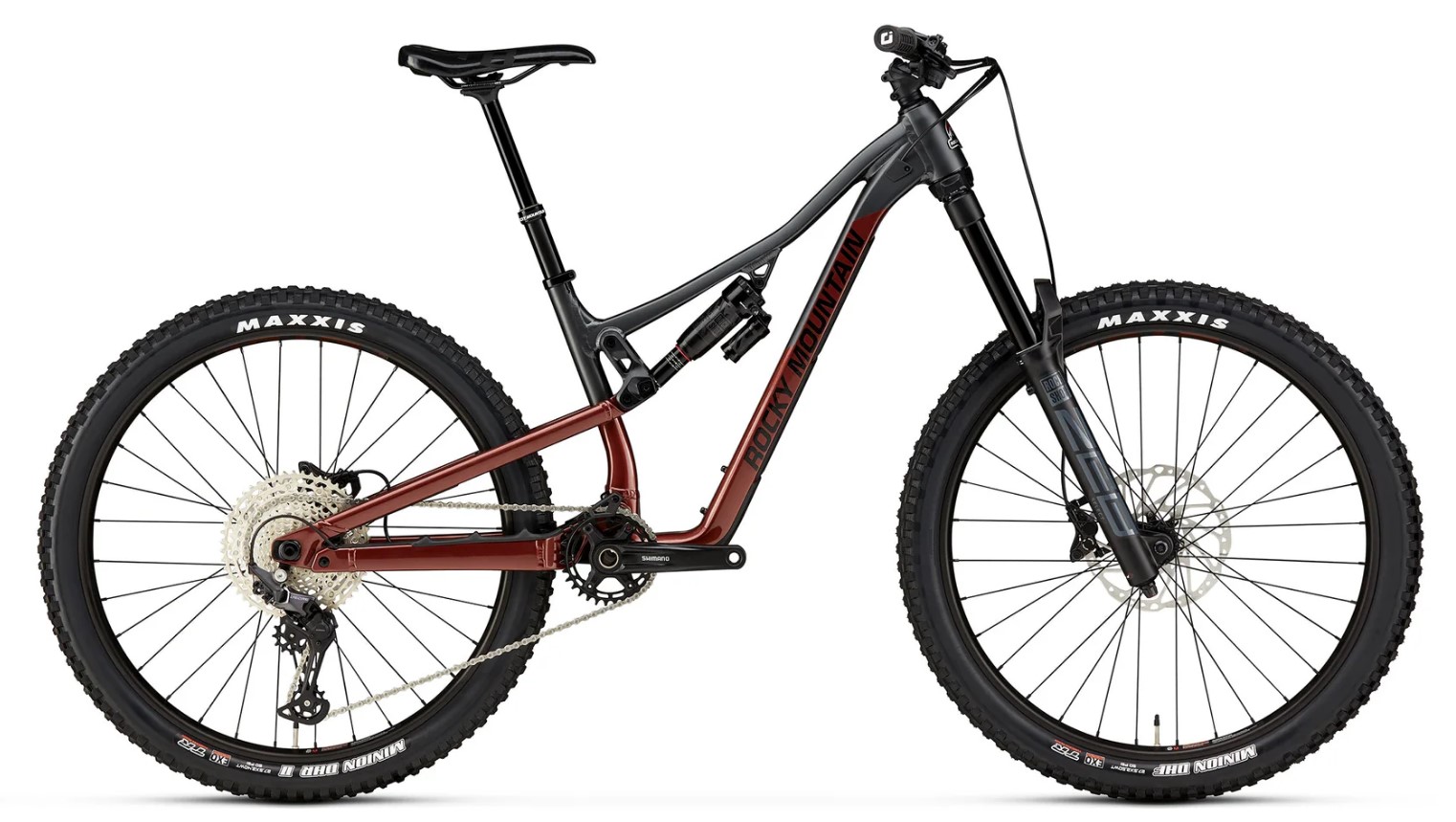

2022 ROCKY MOUNTAIN Altitude A30 Small
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 32.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.91 |
| STARTING LEVERAGE | 3.45 |
| SAG POINT LEVERAGE | 3.28 |
| ENDING LEVERAGE | 2.27 |
| PROGRESSION % | 34.20 |
| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX FLOAT X |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 450,500,550,650,700,750, |
| HEAD TUBE ANGLE | 64.4 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | FOX 38 FLOAT ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | small frame uses 210 x 55, 2021-2023, Ride positions 1-9 , best estimate for 55 stroke |
| COMMENTS |
