Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2022 ROCKY MOUNTAIN Altitude C50
| MODEL VERSION YEARS | 2021-2023 |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 32.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.98 |
| ENDING LEVERAGE | 2.02 |
| PROGRESSION % | 35.87 |

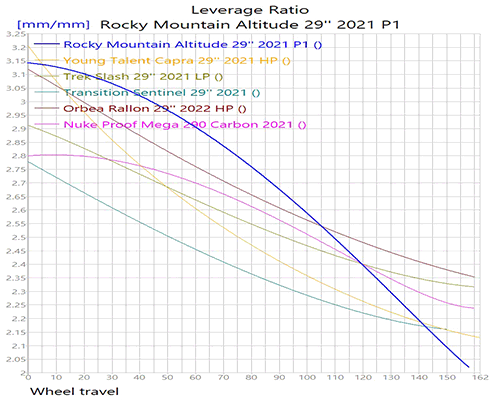

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX FLOAT X |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | 64.4 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | FOX 38 FLOAT ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | 2021-2023, Ride positions 1-9 , C50, C70, C90 |
| COMMENTS |
