Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2022 We Are One Arrival 130
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 185 x 50,T |
| TRAVEL MM | 130 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.60 |
| STARTING LEVERAGE | 3.22 |
| SAG POINT LEVERAGE | 2.87 |
| ENDING LEVERAGE | 2.30 |
| PROGRESSION % | 28.57 |
| LEVERAGE CURVE | HPL
|

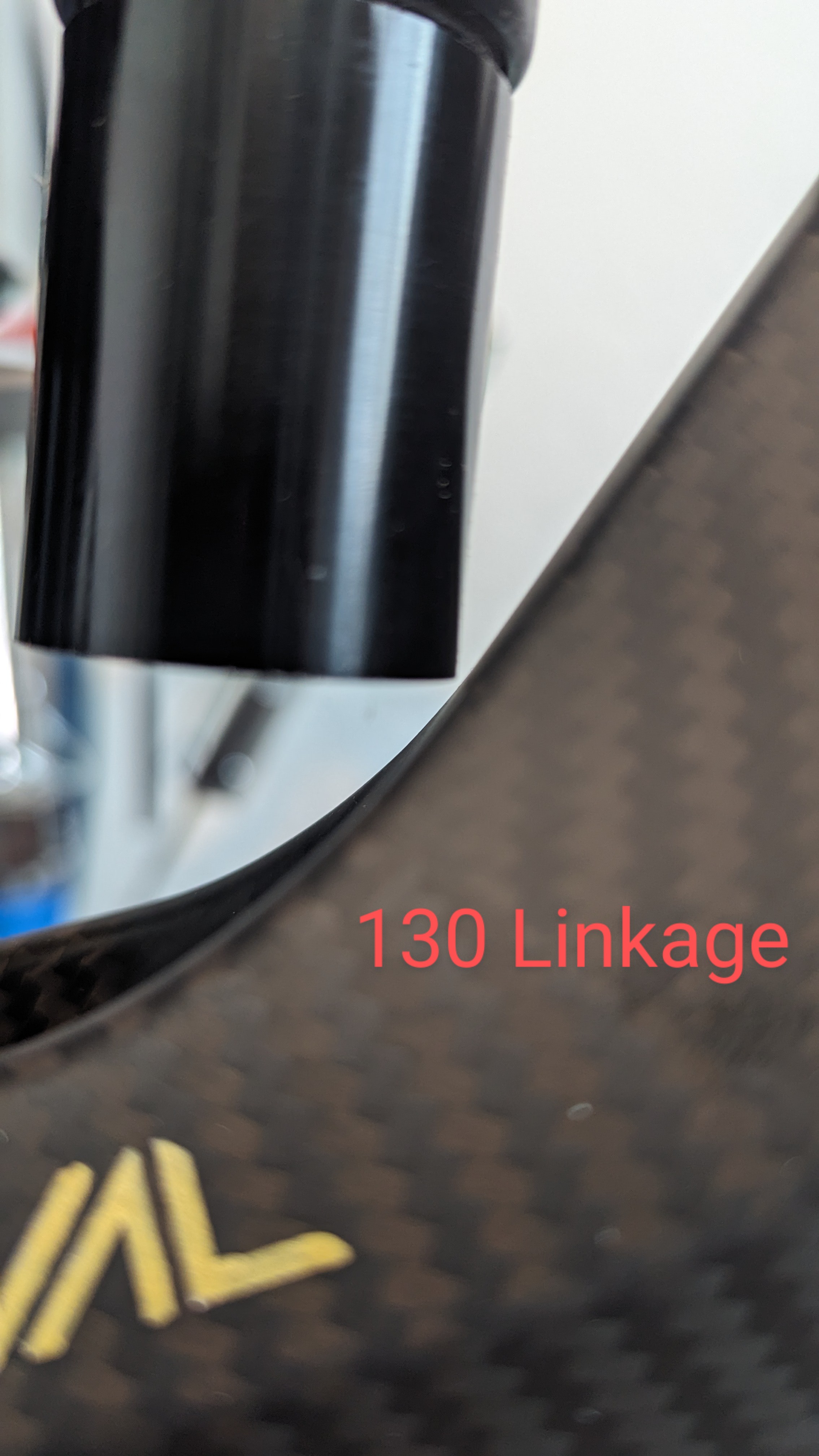

| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | ROCKSHOX MY23 COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,750, |
| HEAD TUBE ANGLE | 64 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Optional 130 link kit, BomberCr reservoir needs to be shortened by 10 mm |
| COMMENTS |
