Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2022 YT Industries Capra Pro Core 4
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 170 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 40.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 2.9 |
| ENDING LEVERAGE | 2.19 |
| PROGRESSION % | 37.4 |

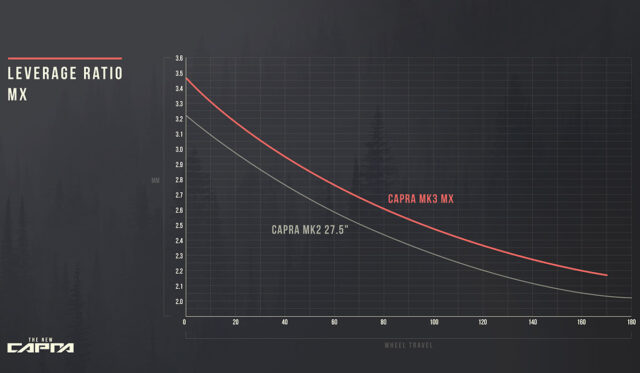

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 30,35,40,45,50,50, |
| COMMENTS | Alloy is 165 mm, Core 3 is same shock/linkage |
| COMMENTS |
