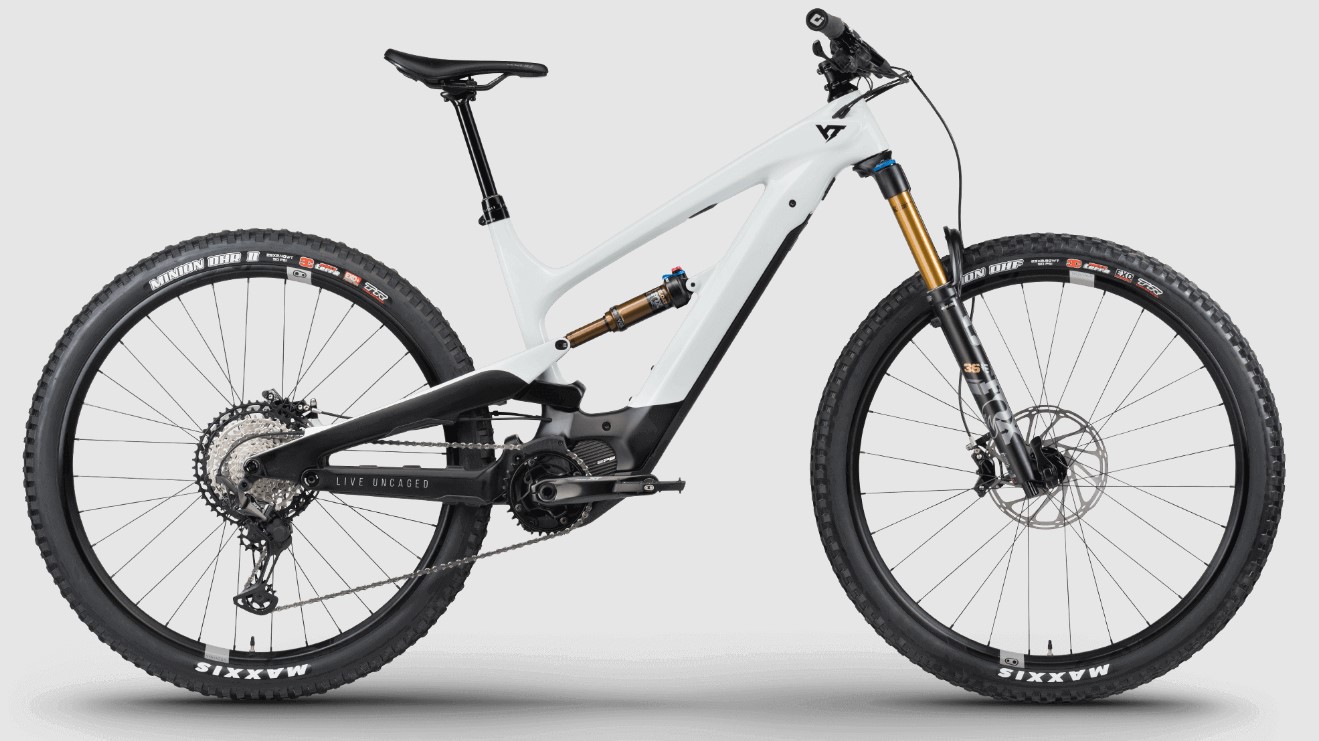

2022 YT Industries Decoy 29 Core 4
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 48 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 145 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.42 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.63 |
| ENDING LEVERAGE | 2.1 |
| PROGRESSION % | 32.3 |

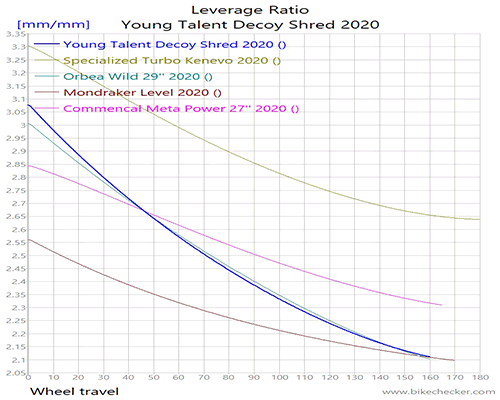

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,400,450,500,550,600, |
| HEAD TUBE ANGLE | 66.3 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 45,50,55,55,60,65, |
| COMMENTS | 48-51 lbs, optional HTA 65.8 |
| COMMENTS |
