All data is our best estimate based on the information provided online

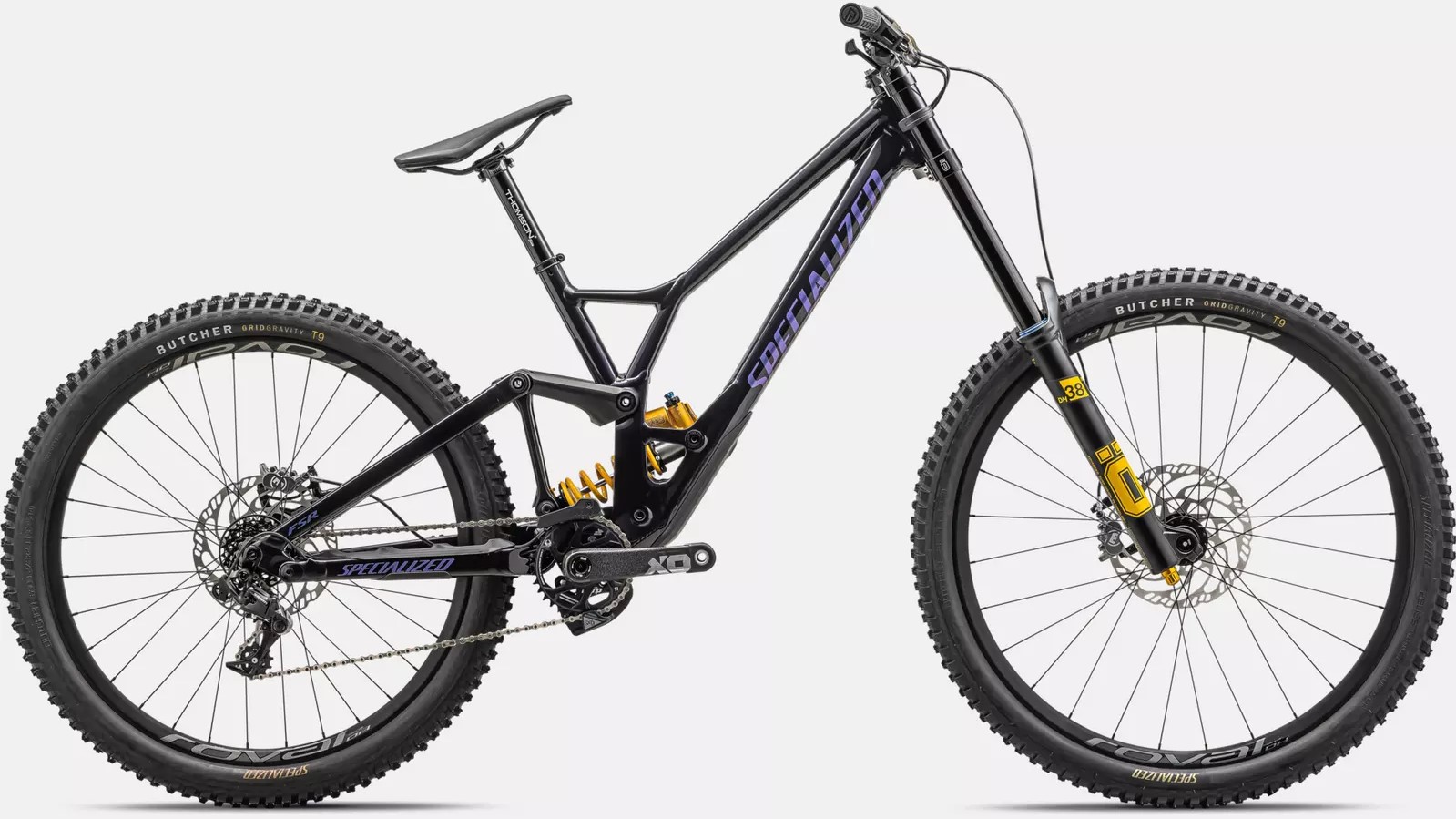

2022 SPECIALIZED Demo Race
| MODEL VERSION YEARS | 2022- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 38 |
| SHOCK SIZE | 225 x 75,T |
| TRAVEL MM | 200 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.47 |
| SAG POINT LEVERAGE | 2.97 |
| ENDING LEVERAGE | 2.05 |
| PROGRESSION % | 40.9 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,550, |
| HEAD TUBE ANGLE | 62.7 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | ROCKSHOX BOXXER ULTIMATE FOX 40 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | Rearward movement of linkage |
| COMMENTS | 2020-2023, needs eyelet squared off to clear linkage |
