All data is our best estimate based on the information provided online

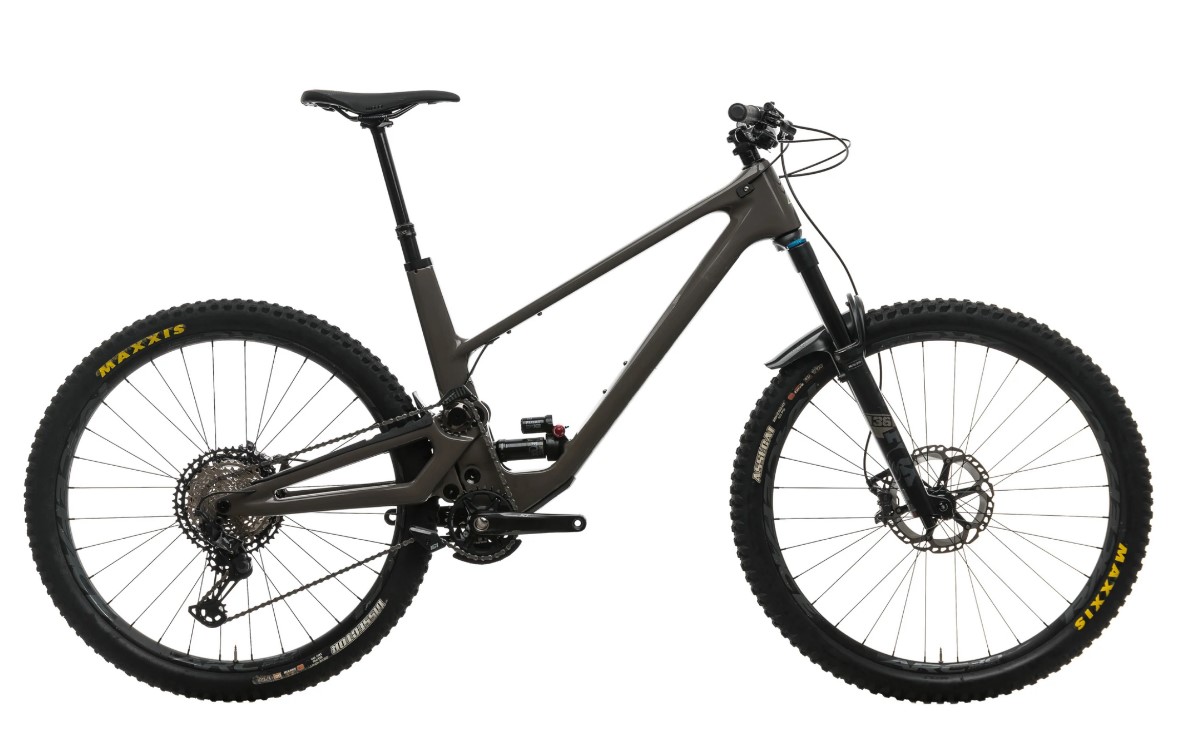

2022 FORBIDDEN Dreadnought
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32.5 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 154 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.37 |
| STARTING LEVERAGE | 2.675 |
| SAG POINT LEVERAGE | 2.45 |
| ENDING LEVERAGE | 1.875 |
| PROGRESSION % | 29.9 |

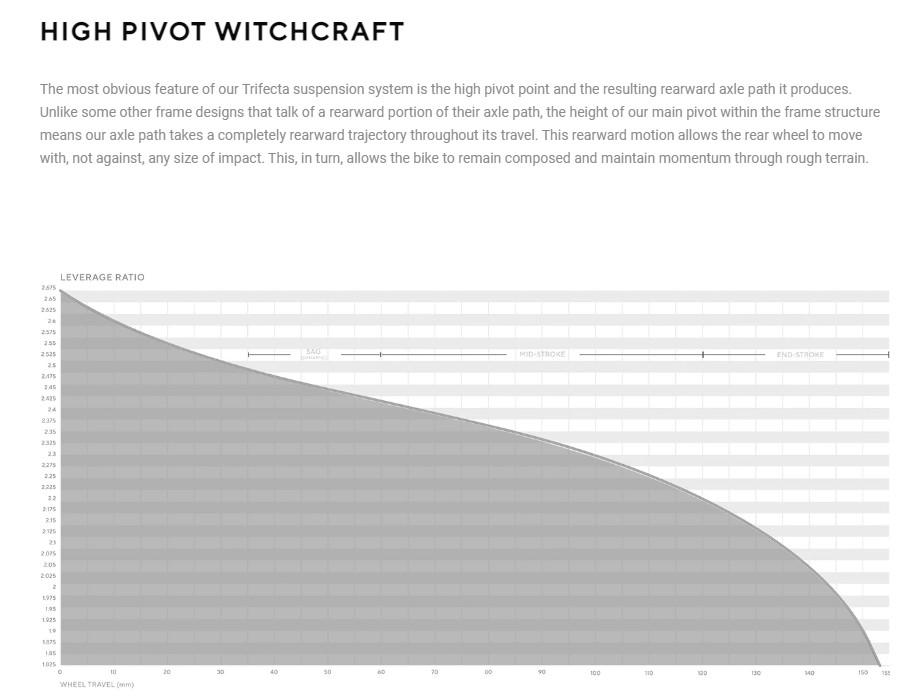

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | EXT STORIA |
| OEM SHOCK | ELEVENSIX |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX ZEB FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | High pivot, 170, 180, 190 mm front setup |
| COMMENTS | Mullet Compatible - Using Ziggy Link |
