Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

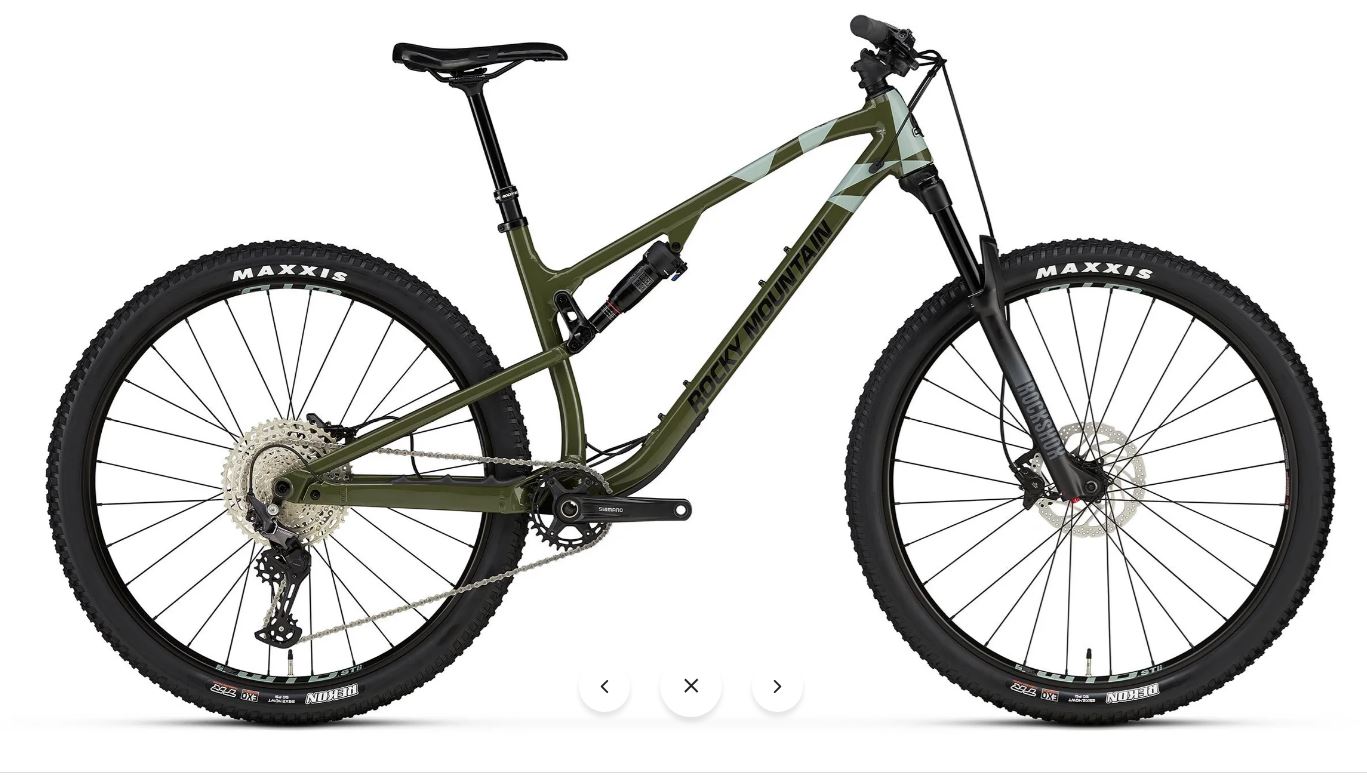

2022 ROCKY MOUNTAIN ELEMENT
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 190 x 45 |
| TRAVEL MM | 120 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | VP (SLIGHT REGRESSION/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.0 |
| SAG POINT LEVERAGE | 2.93 |
| ENDING LEVERAGE | 2.35 |
| PROGRESSION % | 21.7 |
| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 450,550,600,650,700,750, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 50,55,65,70,75,85, |
| COMMENTS | CARBON VERSION ALSO |
| COMMENTS |
