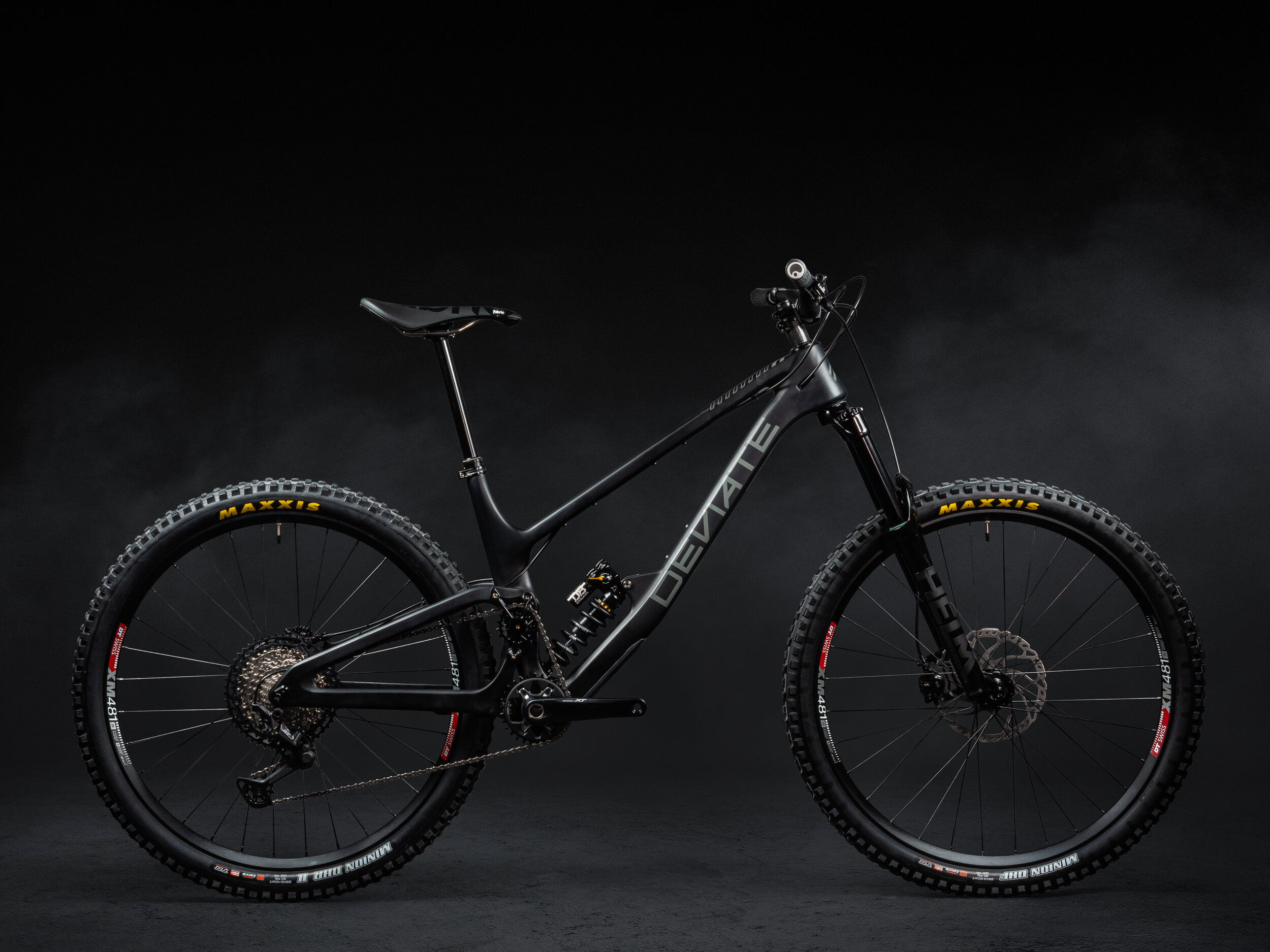

2022 DEVIATE Highlander 150

MODEL VERSION YEARS 2020-2022
TIRE SIZE 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 32
SHOCK SIZE 210 x 55
TRAVEL MM 150
UPPER REDUCER 30.0 x 8.0
LOWER REDUCER 12.7 fitted x 8.0
LINKAGE YOKE FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.73
STARTING LEVERAGE 2.97
SAG POINT LEVERAGE 2.93
ENDING LEVERAGE 2.05
PROGRESSION % 31.0

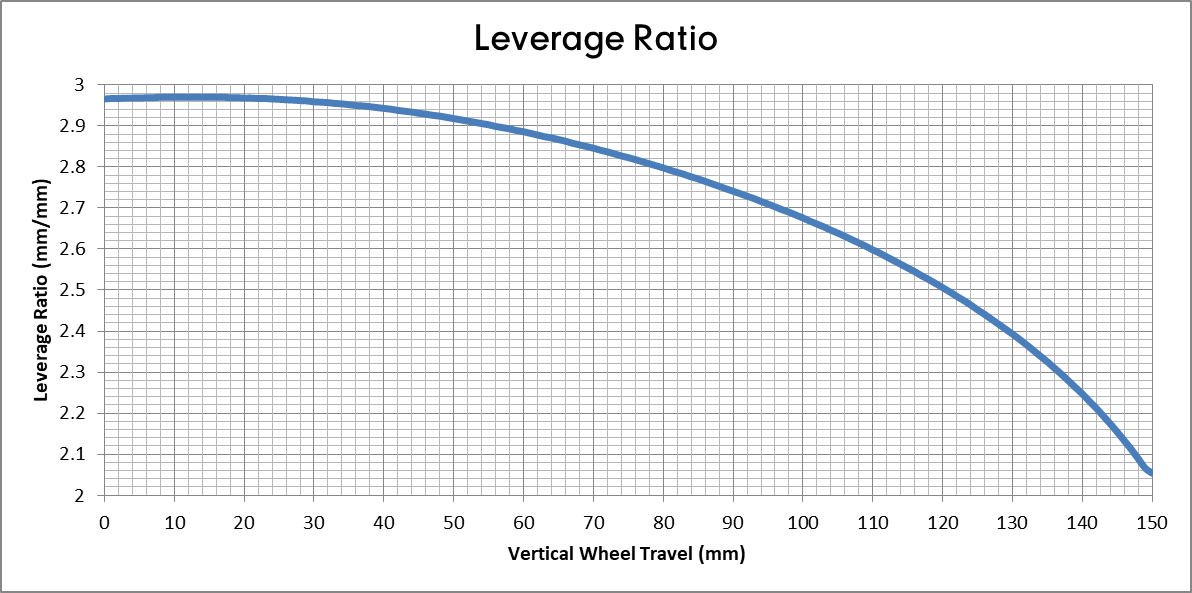

LEVERAGE CURVE PE

Installed PicturesInstalled Views

SHOCK TUNE REGRESSIVE/PROGRESSIVE PE
OEM SHOCK FOX DHX2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 400,500,550,600,650,700,
HEAD TUBE ANGLE 65.0
RECOMMENDED FORK TRAVEL 160
OEM FORK CC HELM MK II
UPGRADE OPTION CARTRIDGE/SPRING BOMBER Z1 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING FOX 36 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX LYRIK HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,50,55,60,
COMMENTS High Pivot rocker system, Yoke attachment, top of BomberCR needs champhers to clear
COMMENTS
