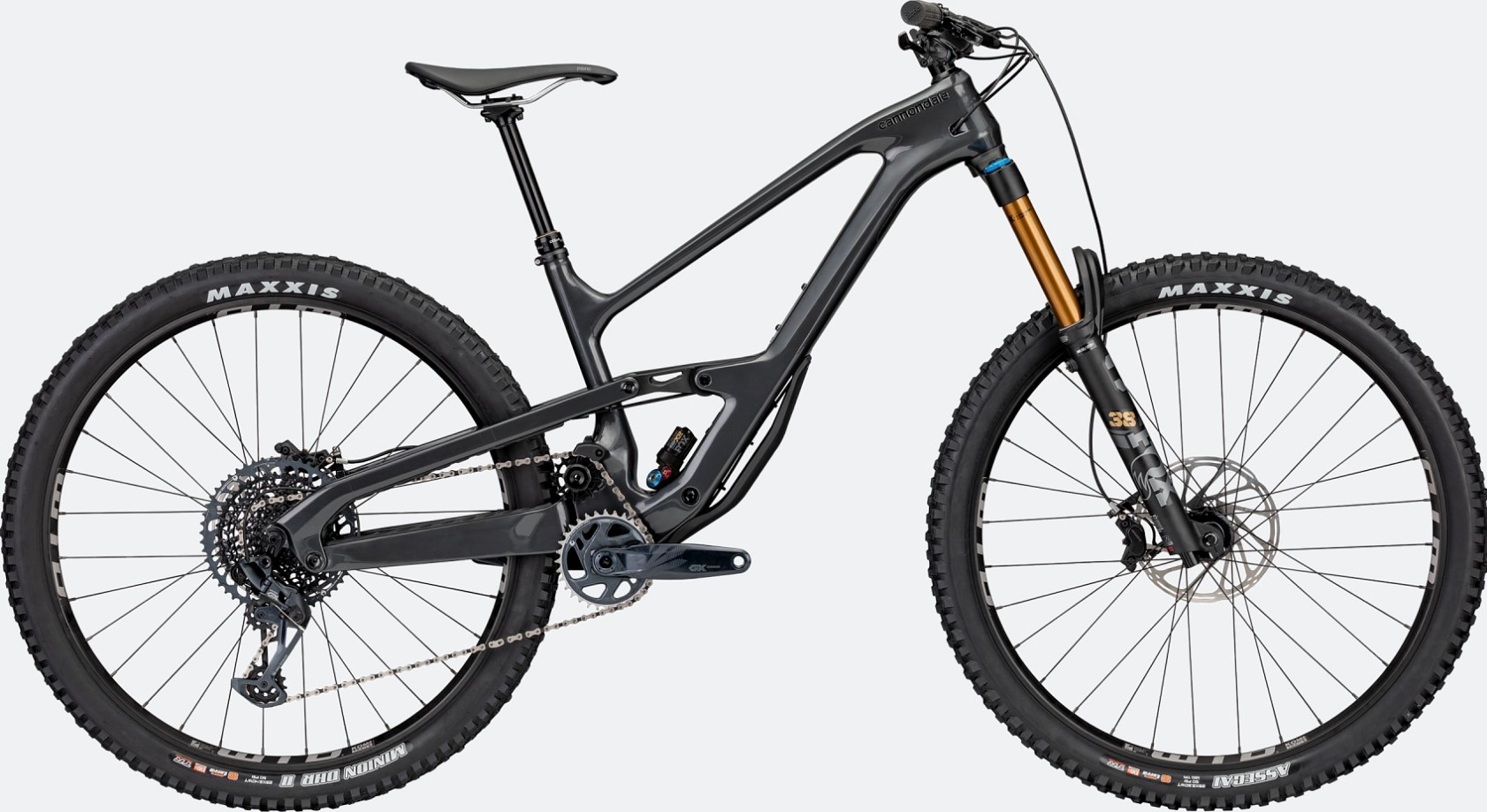

2022 CANNONDALE Jekyll-1 Cascade
| MODEL VERSION YEARS | 2021- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 34.7 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 174 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.68 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.70 |
| ENDING LEVERAGE | 2.29 |
| PROGRESSION % | 21.0 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.0 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | Jack shaft/high pivot,4 settings, 2 for regressive progressive down to 2.5 to 1 |
| COMMENTS | shock installed in down tube upside down |
