Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

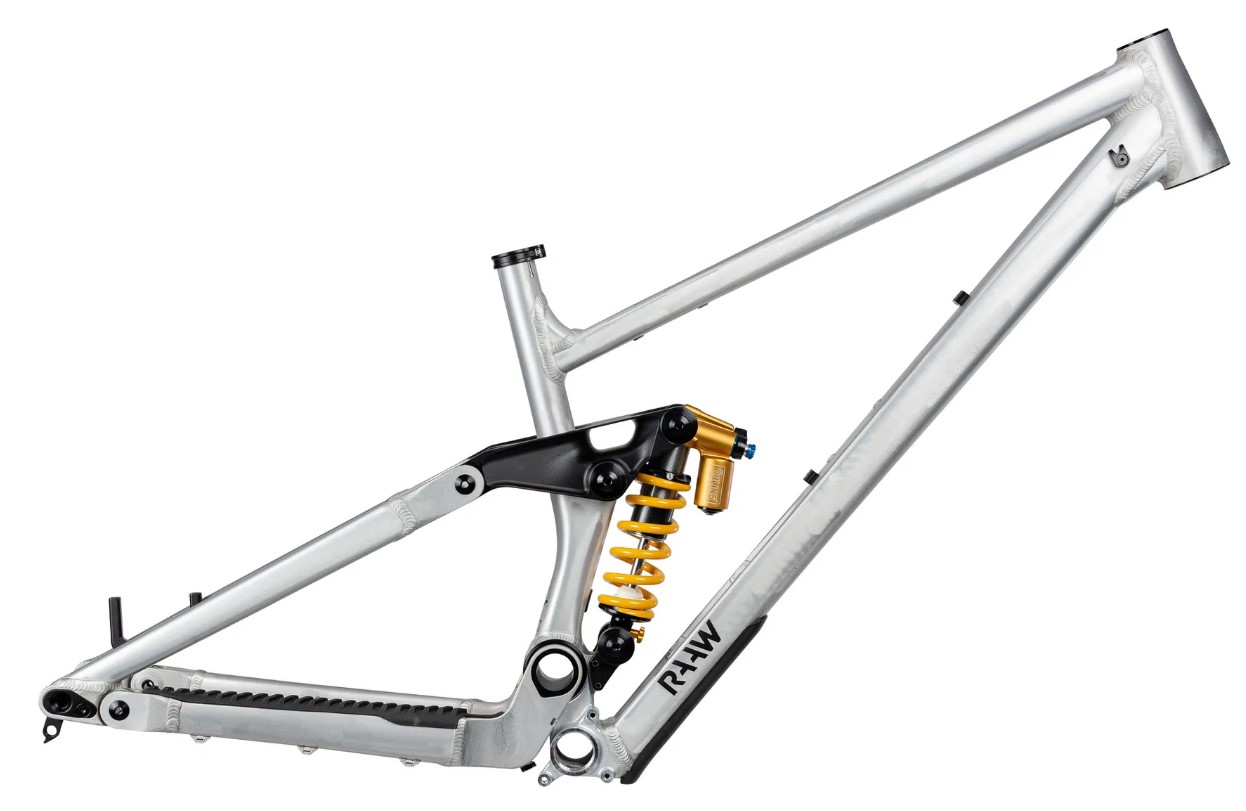

2022 RAAW Madonna V2 60 Rocker
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 172 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.65 |
| STARTING LEVERAGE | 2.95 |
| SAG POINT LEVERAGE | 2.88 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 22.03 |

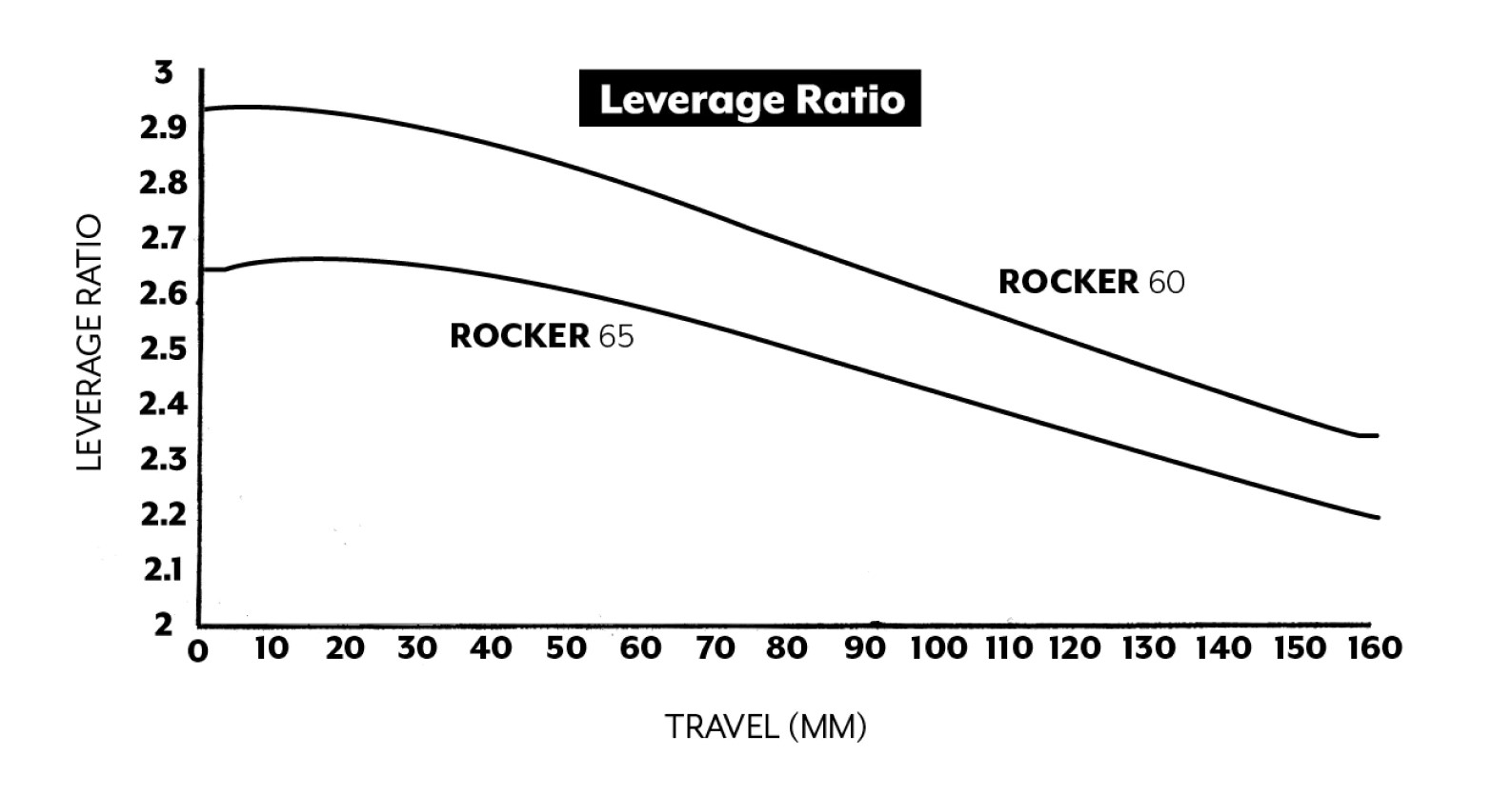

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | OHLINS TTX22M |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,550, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,45,50,50, |
| COMMENTS | 60 rocker with 65 stroke shock |
| COMMENTS | 2 rocker linKs available, 60 and 65, lower leverage 65 for heavier riders |
