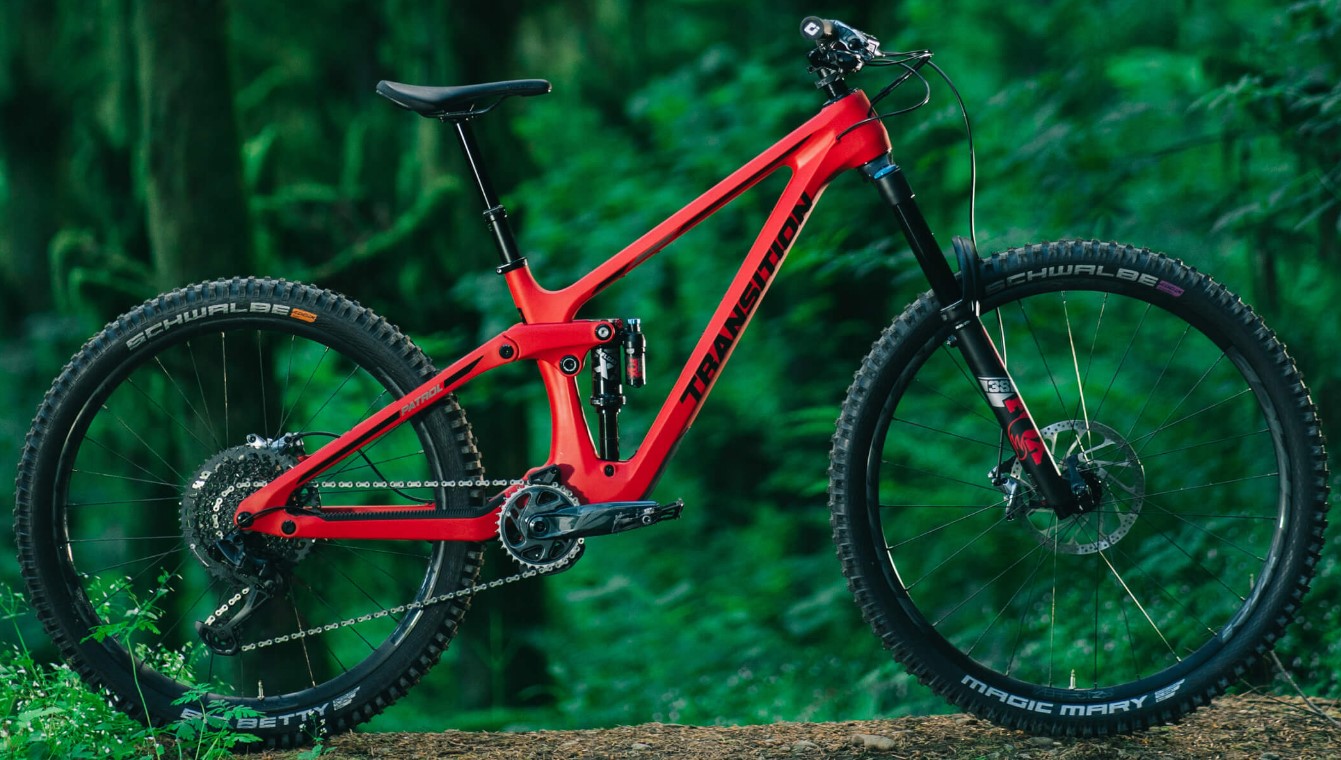

2022 TRANSITION Patrol Carbon GX Cc180

MODEL VERSION YEARS 2022-
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 32
SHOCK SIZE 205 x 65,T
TRAVEL MM 180
UPPER REDUCER
LOWER REDUCER
LINKAGE FOUR BAR (SLIGHT PROGRESSION)
AVERAGE LEVERAGE 2.77
STARTING LEVERAGE 3.37
SAG POINT LEVERAGE 2.94
ENDING LEVERAGE 2.45
PROGRESSION % 27.3

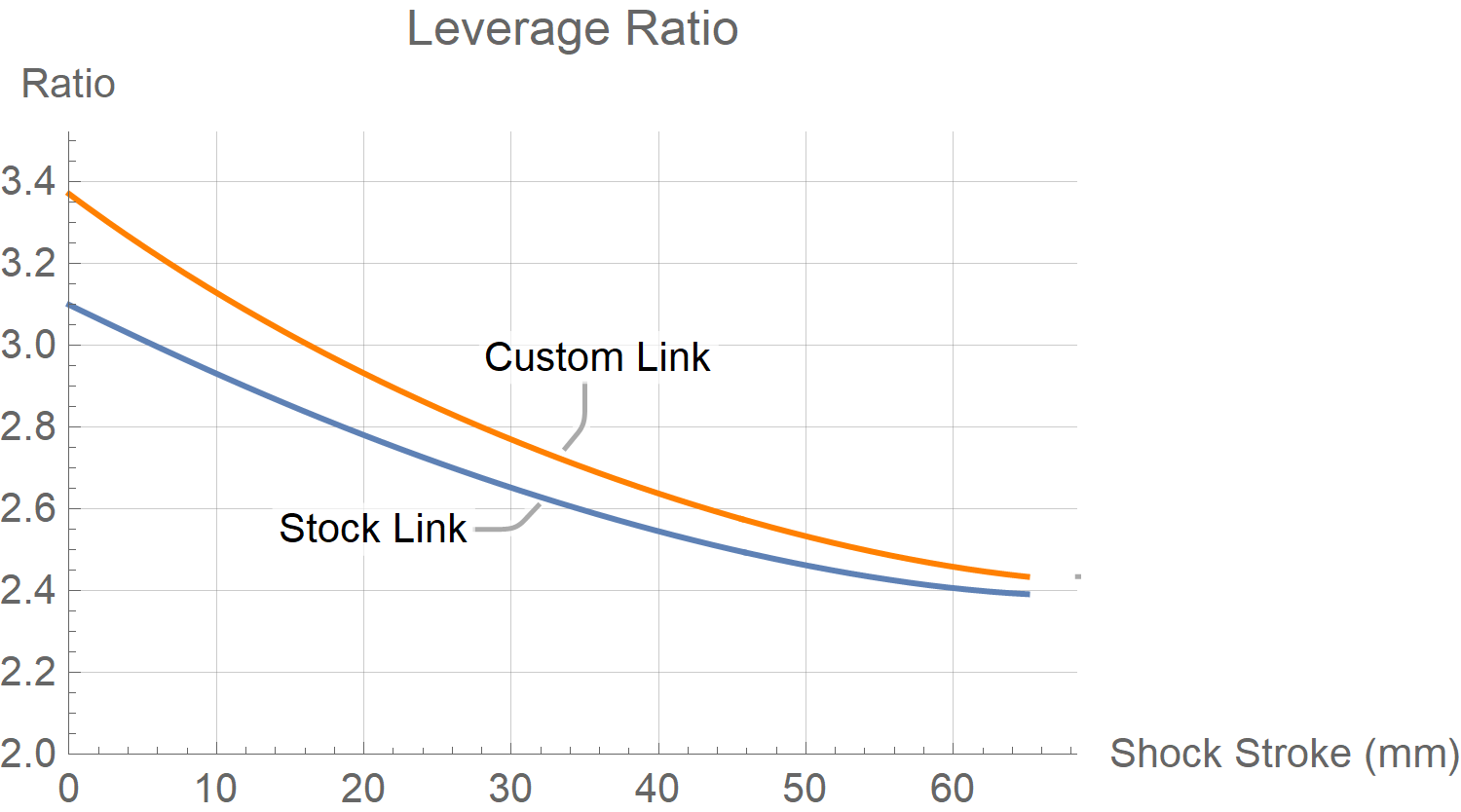

LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE 4-BAR HPL
OEM SHOCK FOX FLOAT DPX2
OEM SHOCK ROCKSHOX SUPER DELUXE
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,450,500,550,600,
HEAD TUBE ANGLE 63.5
RECOMMENDED FORK TRAVEL 180
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 30,35,40,45,50,50,
COMMENTS Cascade link 28%, 180 mm with 65 stroke, 170 mm with 60 stroke
COMMENTS Geo Chip high/low setting, carbon needs reservoir shorter by 10 mm and extemded shaft(with 61 mm travel)
