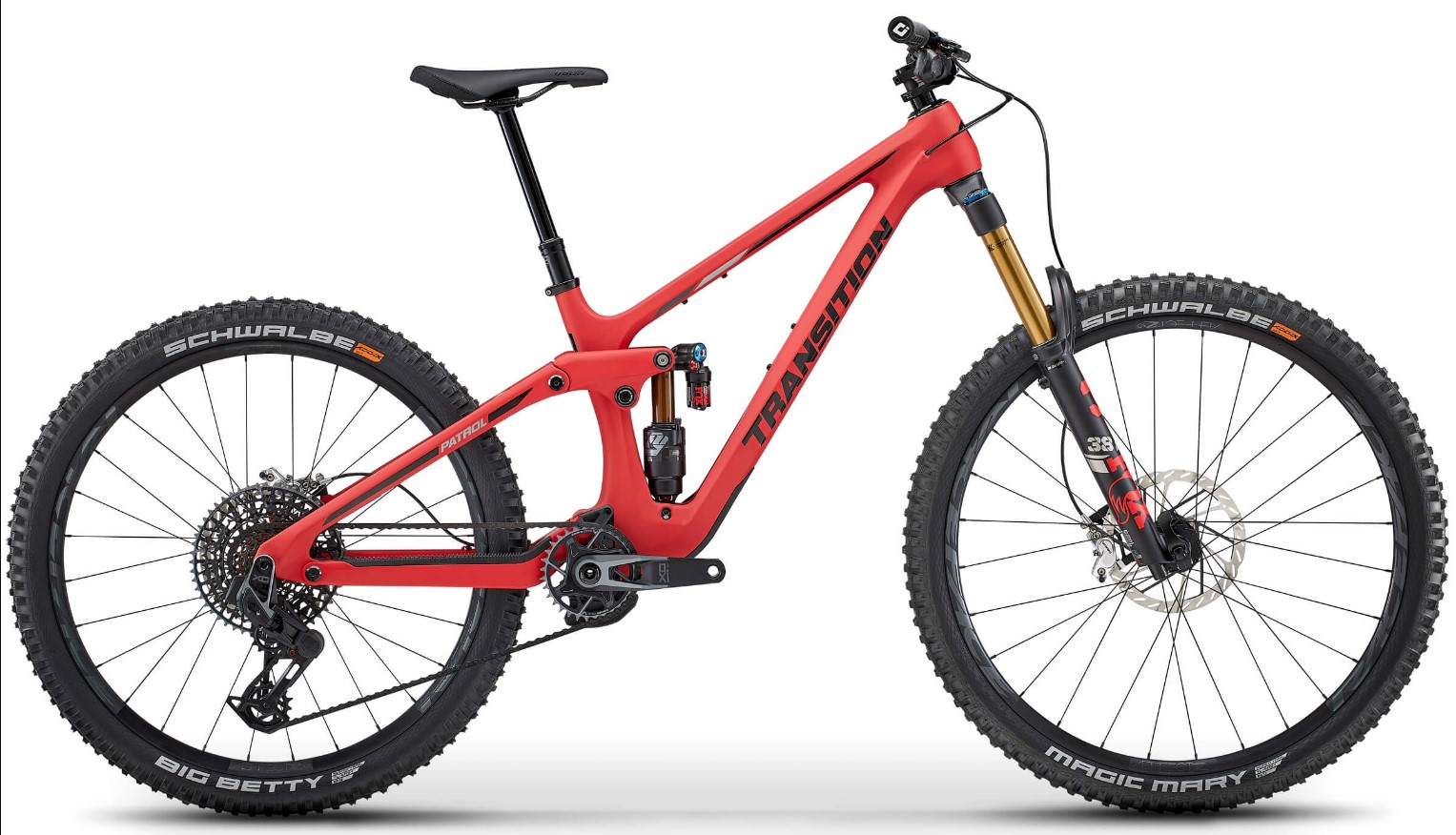

2022 TRANSITION Patrol Carbon
| MODEL VERSION YEARS | 2022- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 170 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.08 |
| SAG POINT LEVERAGE | 2.78 |
| ENDING LEVERAGE | 2.36 |
| PROGRESSION % | 23.4 |

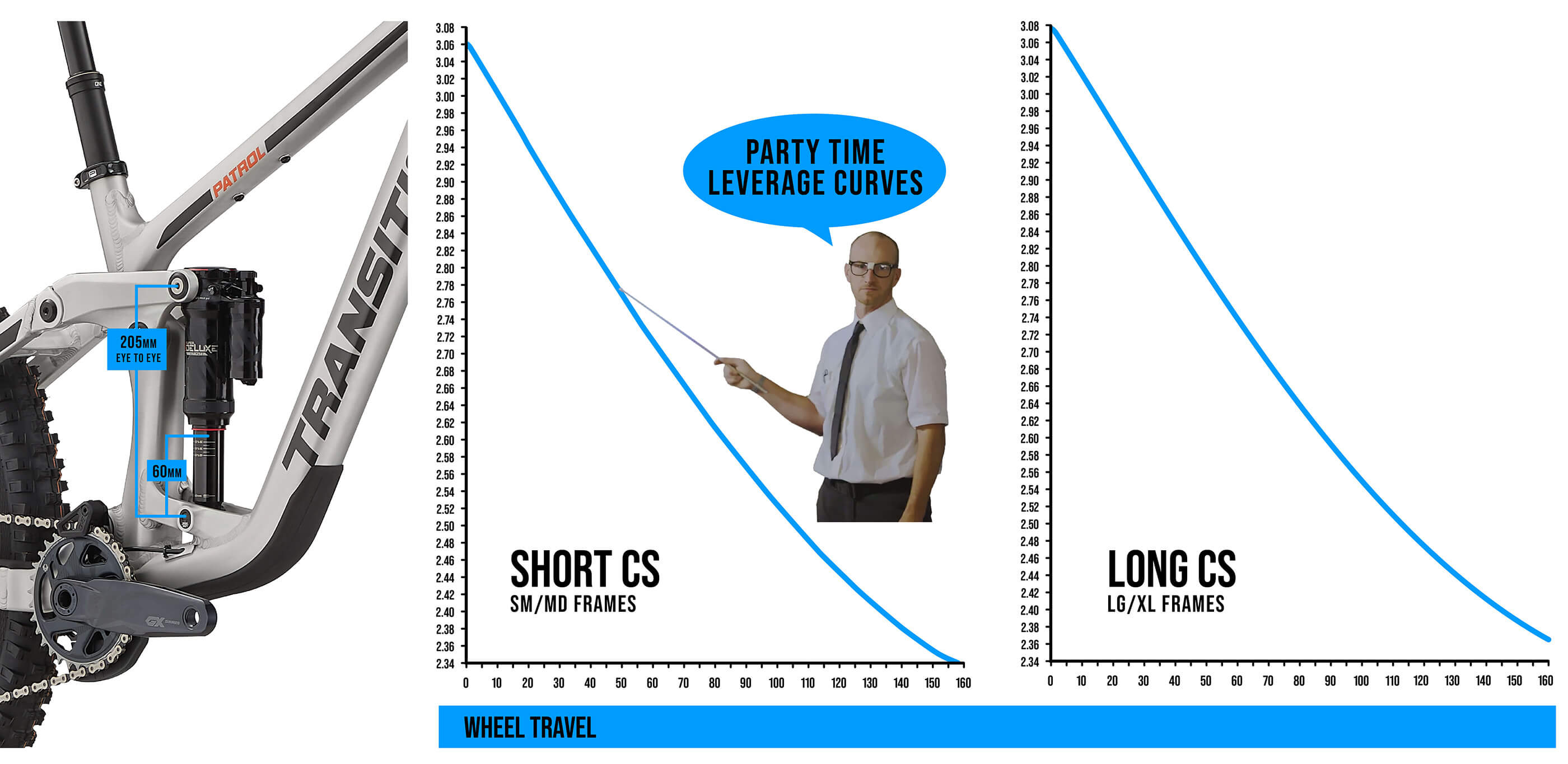

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | V3 is more progressive leverage, 24%, carbon needs reservoir shorter by 10 mm(except XL) and or extemded shaft(with 61 mm travel), decrease travel to 160 with 60 stroke, Geo Chip high/low setting |
| COMMENTS | Cascade link 28%, 180 mm with 65 stroke, 170 mm with 60 stroke |
