Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

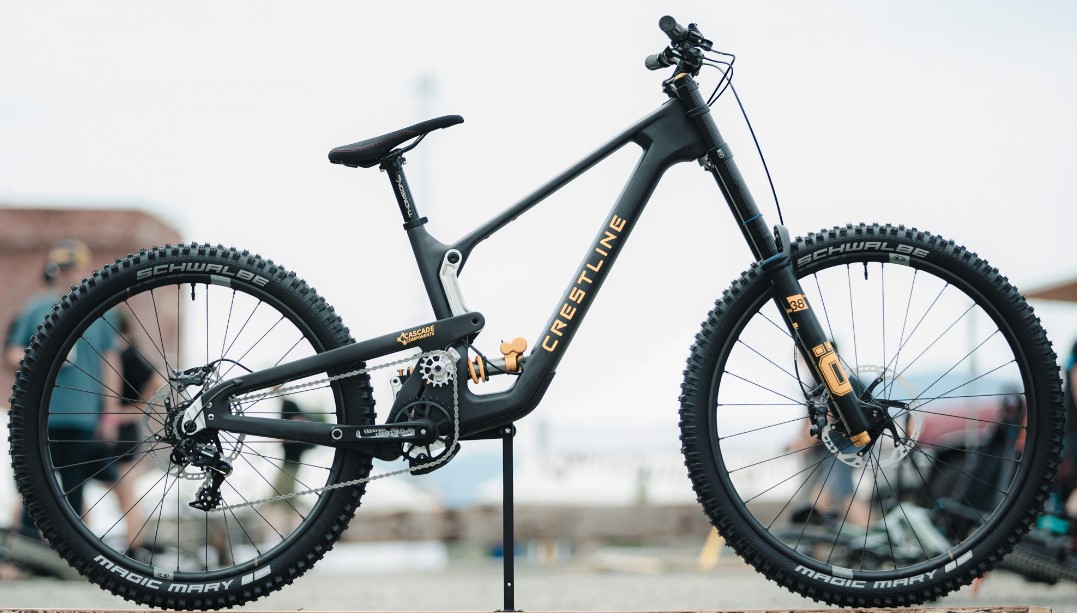

2022 CRESTLINE RS205 VHP
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 38 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 205 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.2 |
| PROGRESSION % | 30.2 |

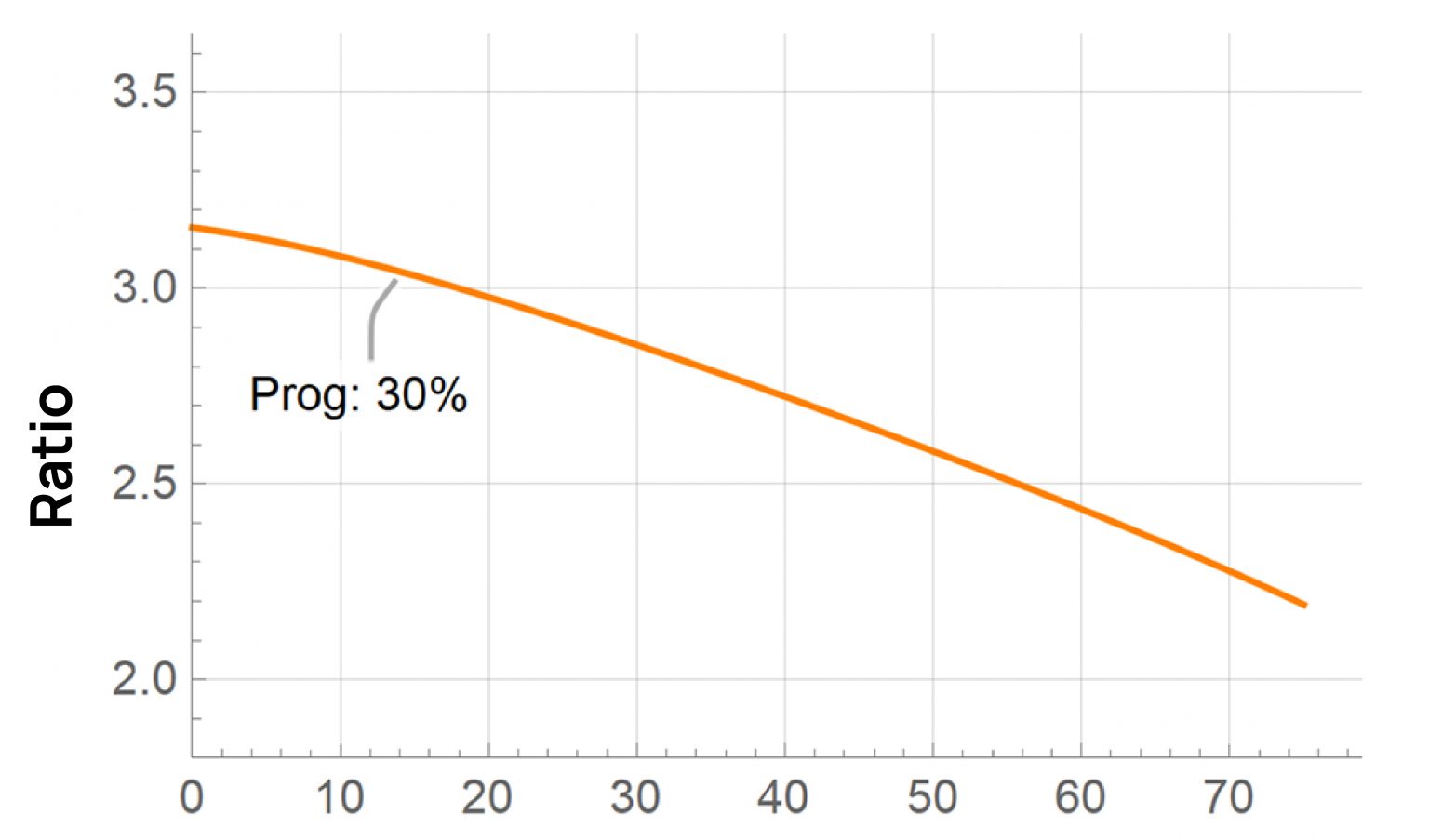

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | Ohlins TTX2 Coil |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | Cascade Components Kinematics |
| COMMENTS |
