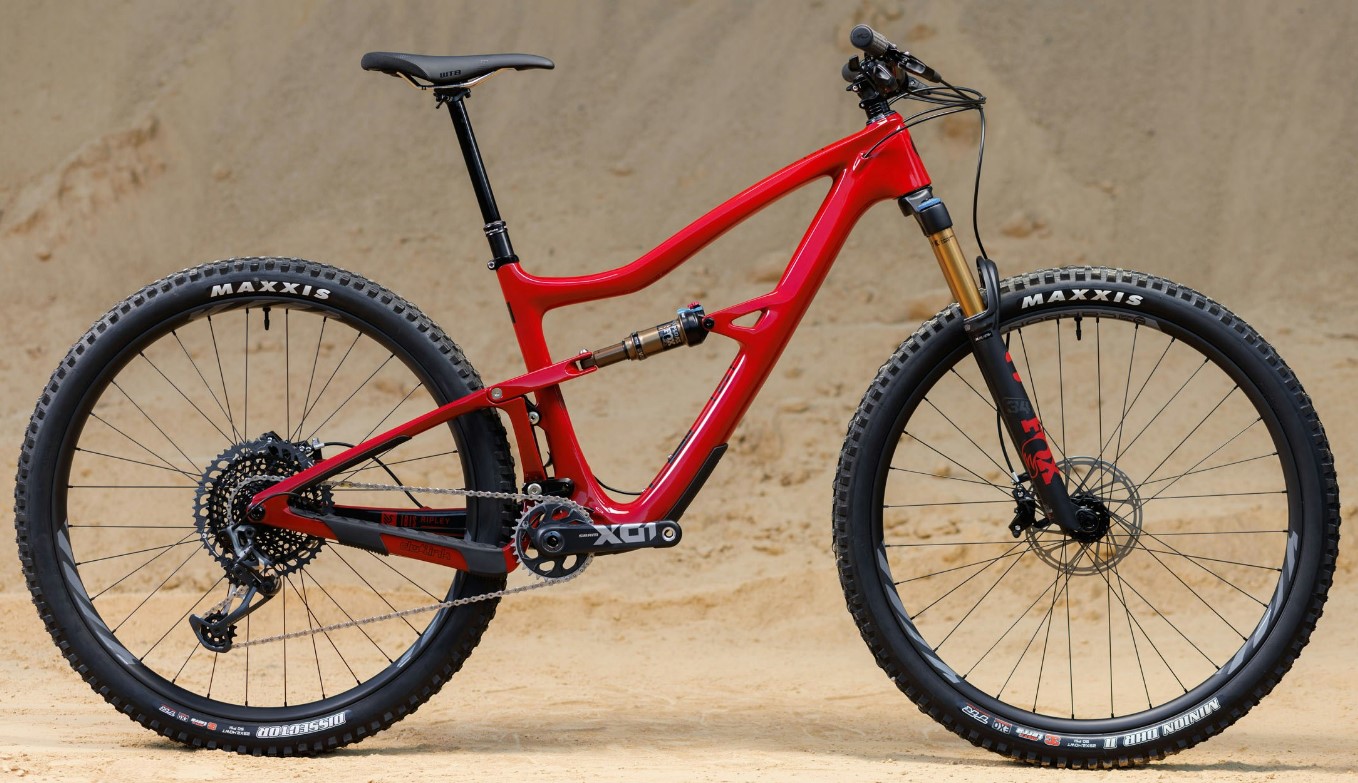

2022 IBIS Ripley V4S
| MODEL VERSION YEARS | 2022-2024 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 27 |
| SHOCK SIZE | 190 x 45 |
| TRAVEL MM | 120 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 15.2 x 8.0 |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.69 |
| ENDING LEVERAGE | 2.52 |
| PROGRESSION % | 13.10 |

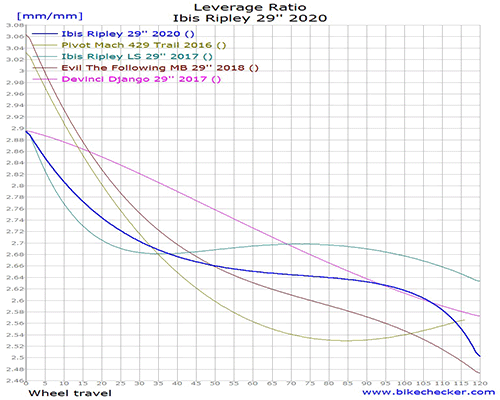

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PBLE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | ROCKSHOX SUPER DELUXE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | FOX 34 FLOAT 29 |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 45,50,55,60,65,70, |
| COMMENTS | V4S UDH compatible rear-end, increased frame protection, stiffer rear triangle, 120-140 mm forks |
| COMMENTS |
