All data is our best estimate based on the information provided online

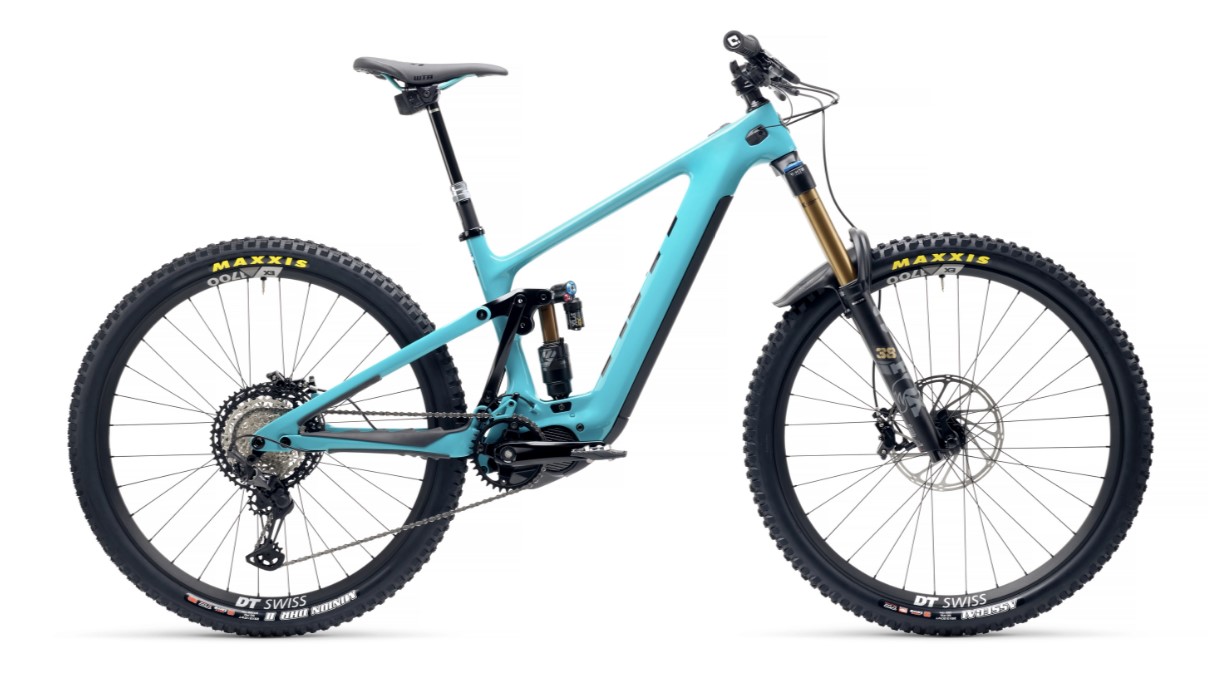

2022 YETI SB160E
| MODEL VERSION YEARS | 2022- |
|---|---|
| TIRE SIZE | |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 49 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 43.69 x 8.0 |
| LINKAGE | SLIDING PIVOT (LOW LEVERAGE LINEAR) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.75 |
| ENDING LEVERAGE | 2.0 |
| PROGRESSION % | 35.5 |

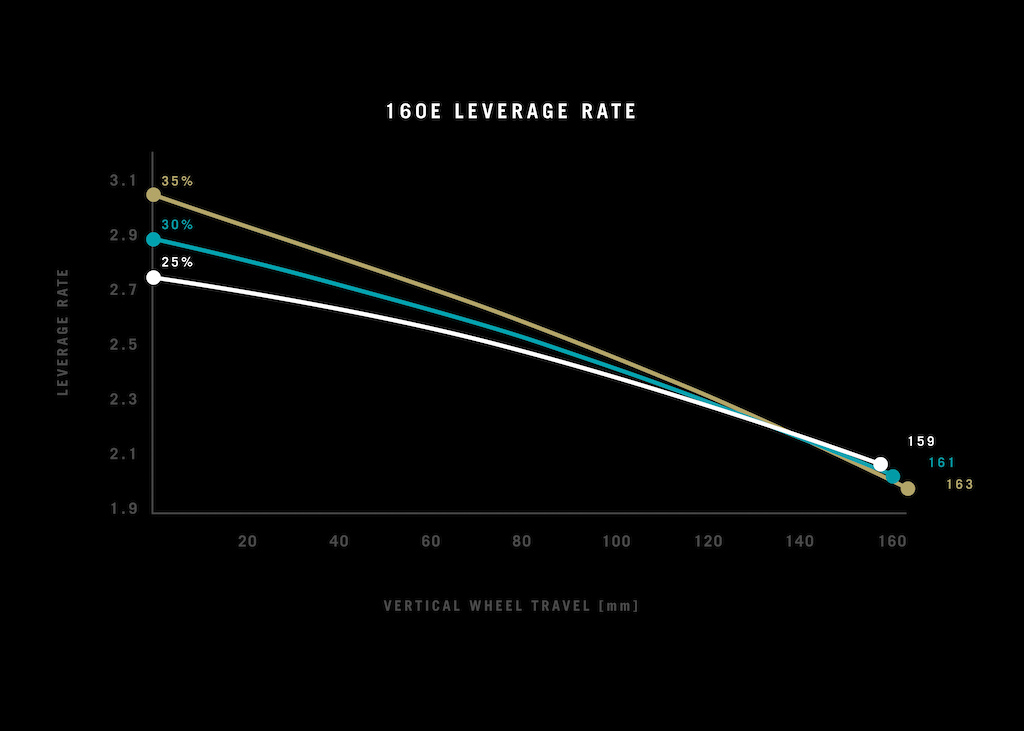

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,40,45,50,55,60, |
| COMMENTS | Sixfinity, rocker & timing link |
| COMMENTS | adjustable progrerssion from 25-30-35 % |
