Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

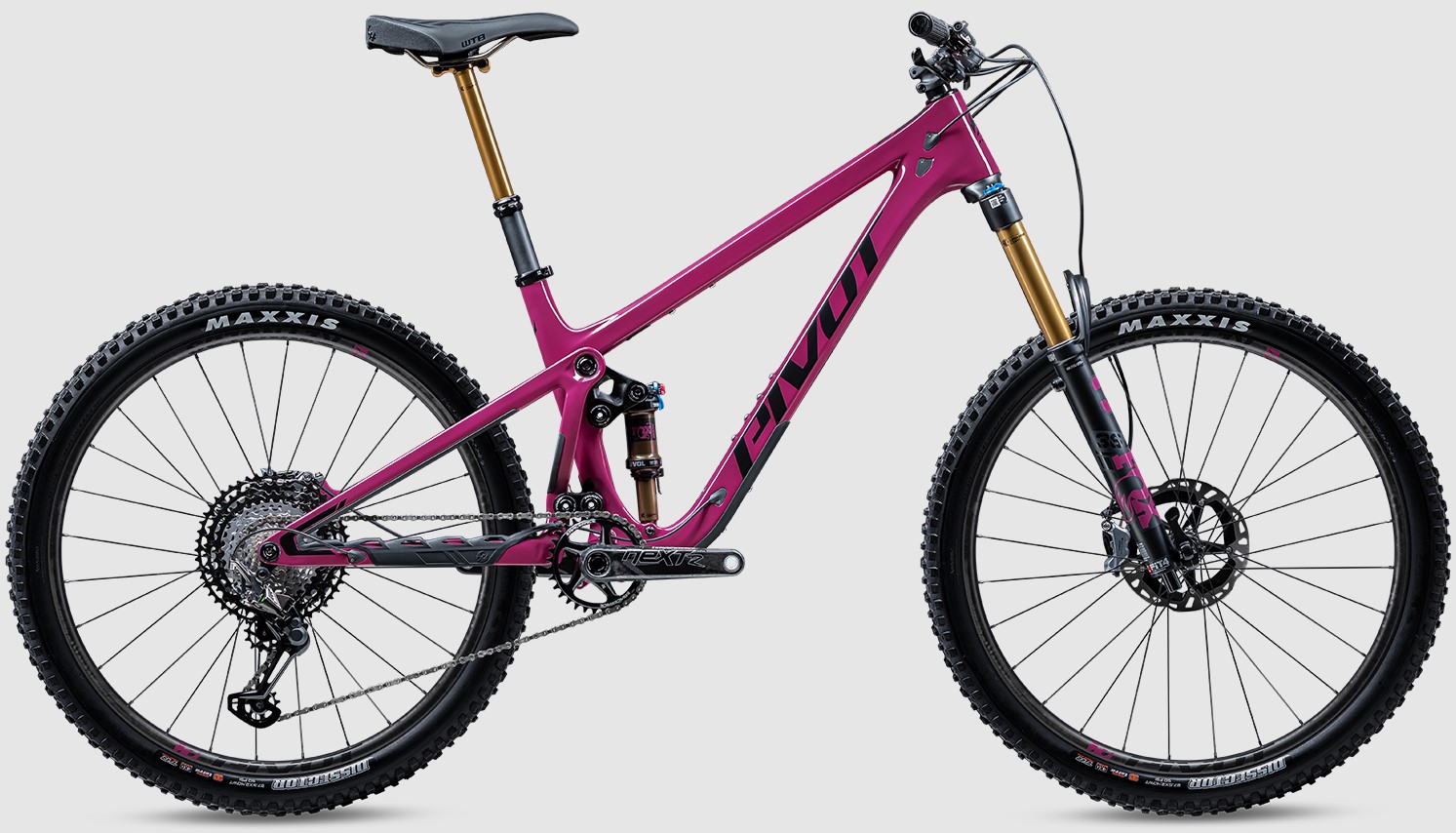

2022 PIVOT Shadowcat
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 140 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | DW (SPLIT PROGRESSIION) |
| AVERAGE LEVERAGE | 2.55 |
| STARTING LEVERAGE | 3.12 |
| SAG POINT LEVERAGE | 2.72 |
| ENDING LEVERAGE | 2.13 |
| PROGRESSION % | 31.7 |

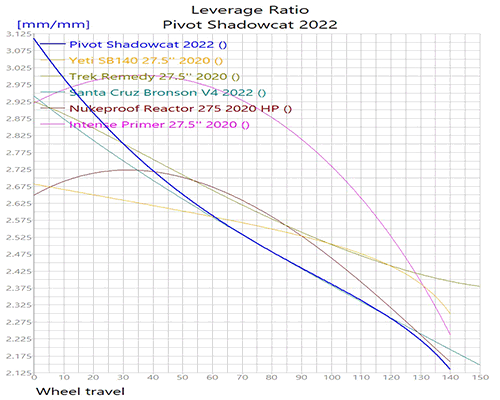

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 65.8 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | DW link progressive |
| COMMENTS |
