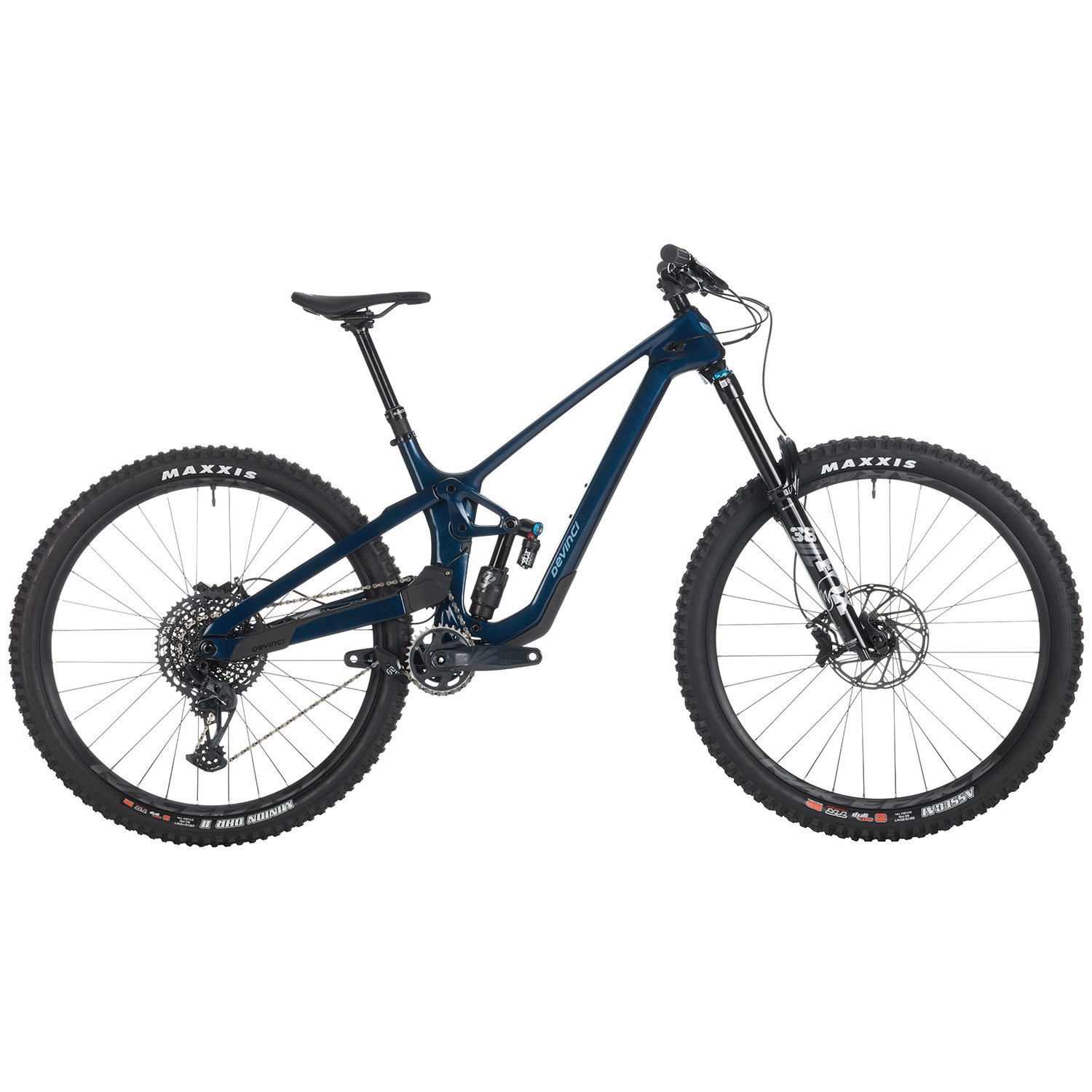

2022 DEVINCI Spartan GX 29
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 36.5 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.63 |
| ENDING LEVERAGE | 2.15 |
| PROGRESSION % | 25.9 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,50,55, |
| COMMENTS | Estimated leverage, High Pivot |
| COMMENTS | head angle option 64.5/65 deg, 430 or 426 chain stay |
