All data is our best estimate based on the information provided online

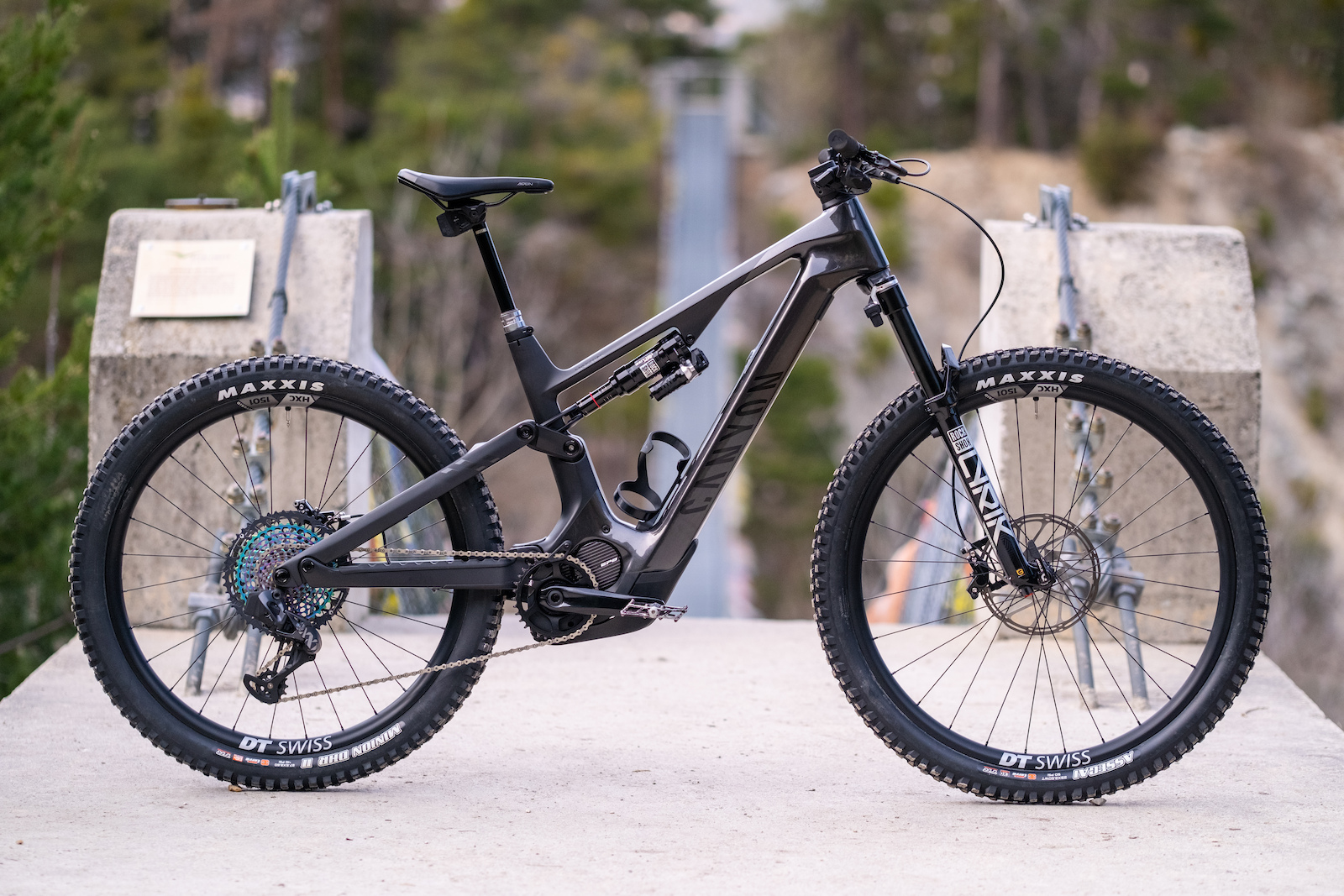

2022 CANYON Spectral ON CRF

MODEL VERSION YEARS
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 48
SHOCK SIZE 230 x 60
TRAVEL MM 150
UPPER REDUCER
LOWER REDUCER
LINKAGE YOKE FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.50
STARTING LEVERAGE 3.1
SAG POINT LEVERAGE 2.66
ENDING LEVERAGE 2.18
PROGRESSION % 29.7
LEVERAGE CURVE PBLE

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PBLE
OEM SHOCK ROCKSHOX SUPER DELUXE
UPGRADE OPTION BOMBER CR
UPGRADE OPTION FOX DHX
UPGRADE OPTION AVALANCHE WOODIE

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 400,450,500,550,600,600,
HEAD TUBE ANGLE 65.5
RECOMMENDED FORK TRAVEL 150
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 45,50,55,55,60,65,
COMMENTS Cayon says no coil because it relies on a stiffer shaft 1/2 inch Chrome Steel or equal
COMMENTS Flip chip high or low
