Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

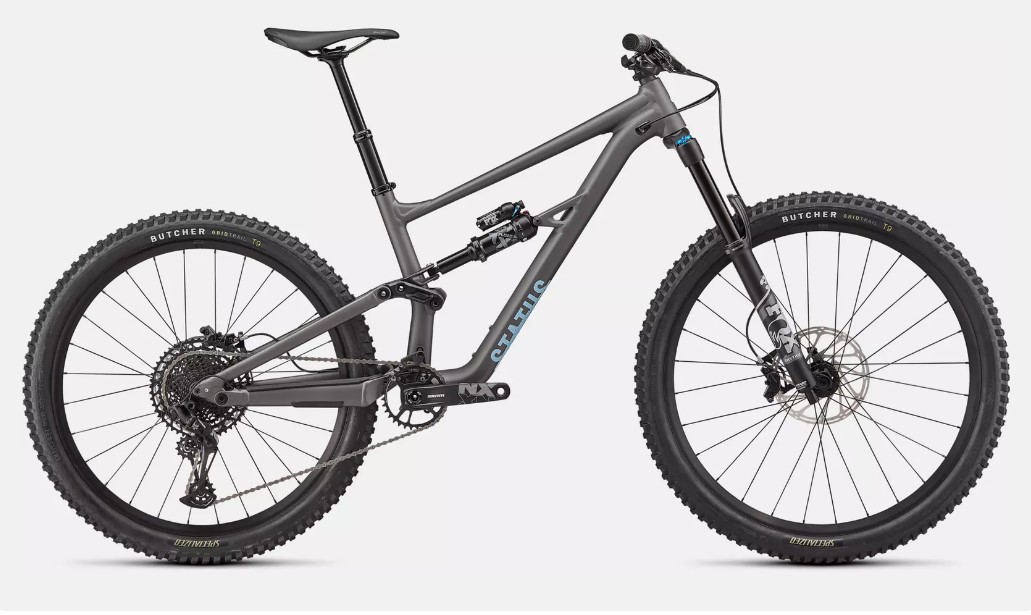

2022 SPECIALIZED Status 160

MODEL VERSION YEARS
TIRE SIZE
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 32
SHOCK SIZE 230 x 60
TRAVEL MM 160
UPPER REDUCER
LOWER REDUCER
LINKAGE Yoke (Progressive)
AVERAGE LEVERAGE 2.67
STARTING LEVERAGE 3.1
SAG POINT LEVERAGE 2.95
ENDING LEVERAGE 2.4
PROGRESSION % 22.6
LEVERAGE CURVE PL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK FOX FLOAT X
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 400,450,500,550,600,600,
HEAD TUBE ANGLE 63.7
RECOMMENDED FORK TRAVEL 170
OEM FORK FOX 36 Rhythm
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,40,45,50,55,
COMMENTS Similar to stumpjumper linkage but beefed up, best estimate for leverage
COMMENTS Yoke Low high flip chip 63.7/63.2
