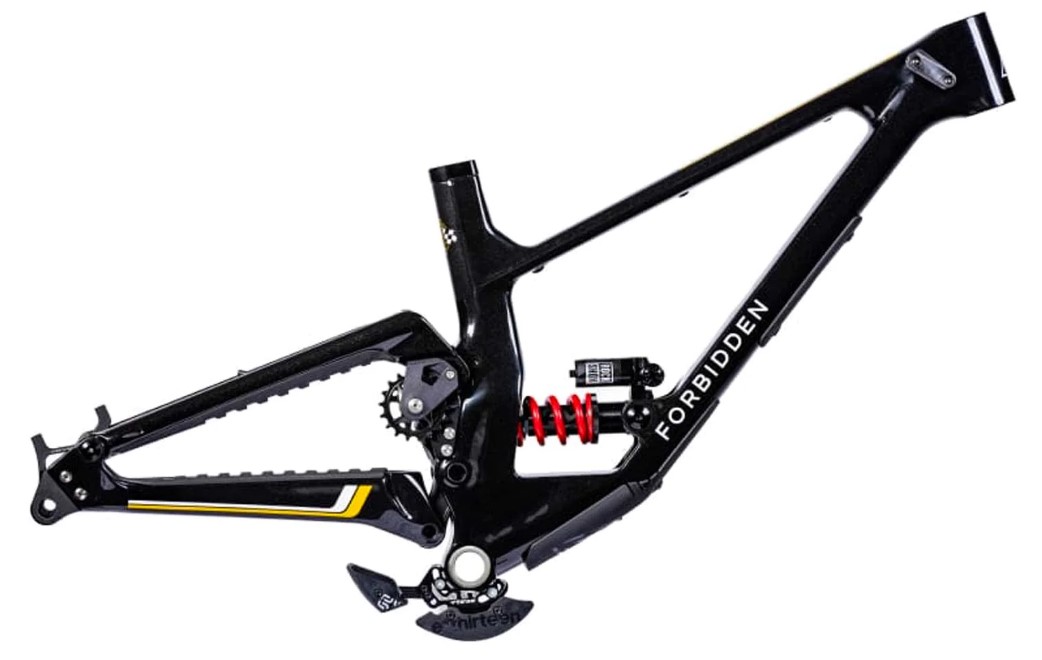

2022 FORBIDDEN Supernought
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 36 |
| SHOCK SIZE | 225 x 75,T |
| TRAVEL MM | 205 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.24 |
| SAG POINT LEVERAGE | 2.87 |
| ENDING LEVERAGE | 2.16 |
| PROGRESSION % | 33.3 |

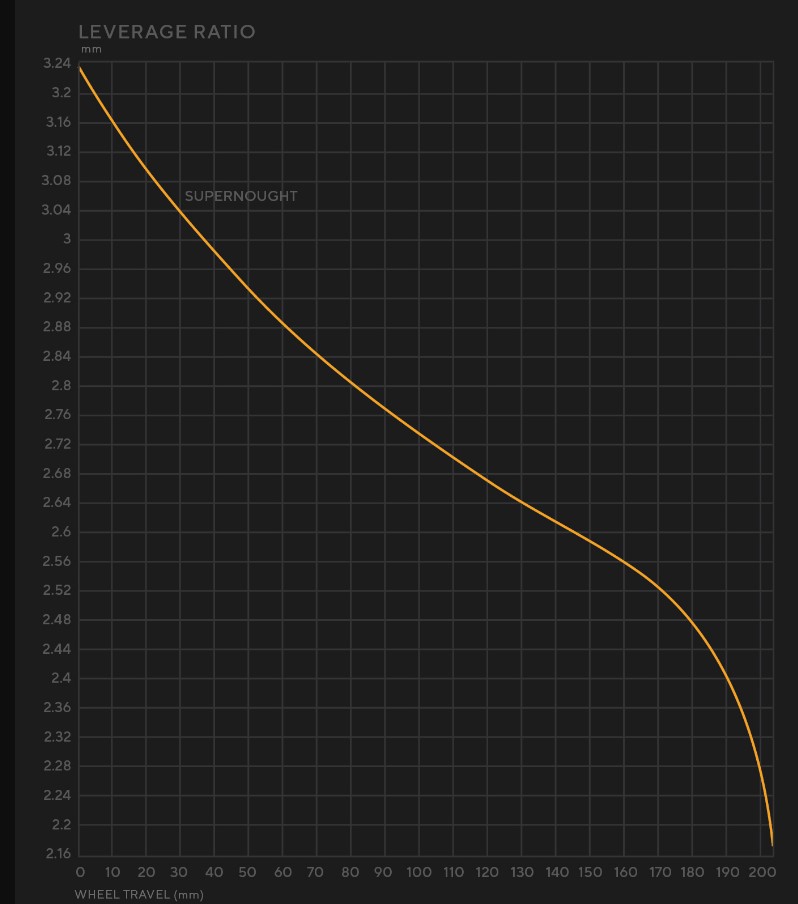

| LEVERAGE CURVE | HPE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPE |
| OEM SHOCK | SUPER DELUXE COIL MY23 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,500, |
| HEAD TUBE ANGLE | 63.1 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 40 HYBRID OPEN BATH |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,50,55, |
| COMMENTS | High pivot, bolt on options for rear wheel size, +/- 10 mm chain stay length |
| COMMENTS |
