Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

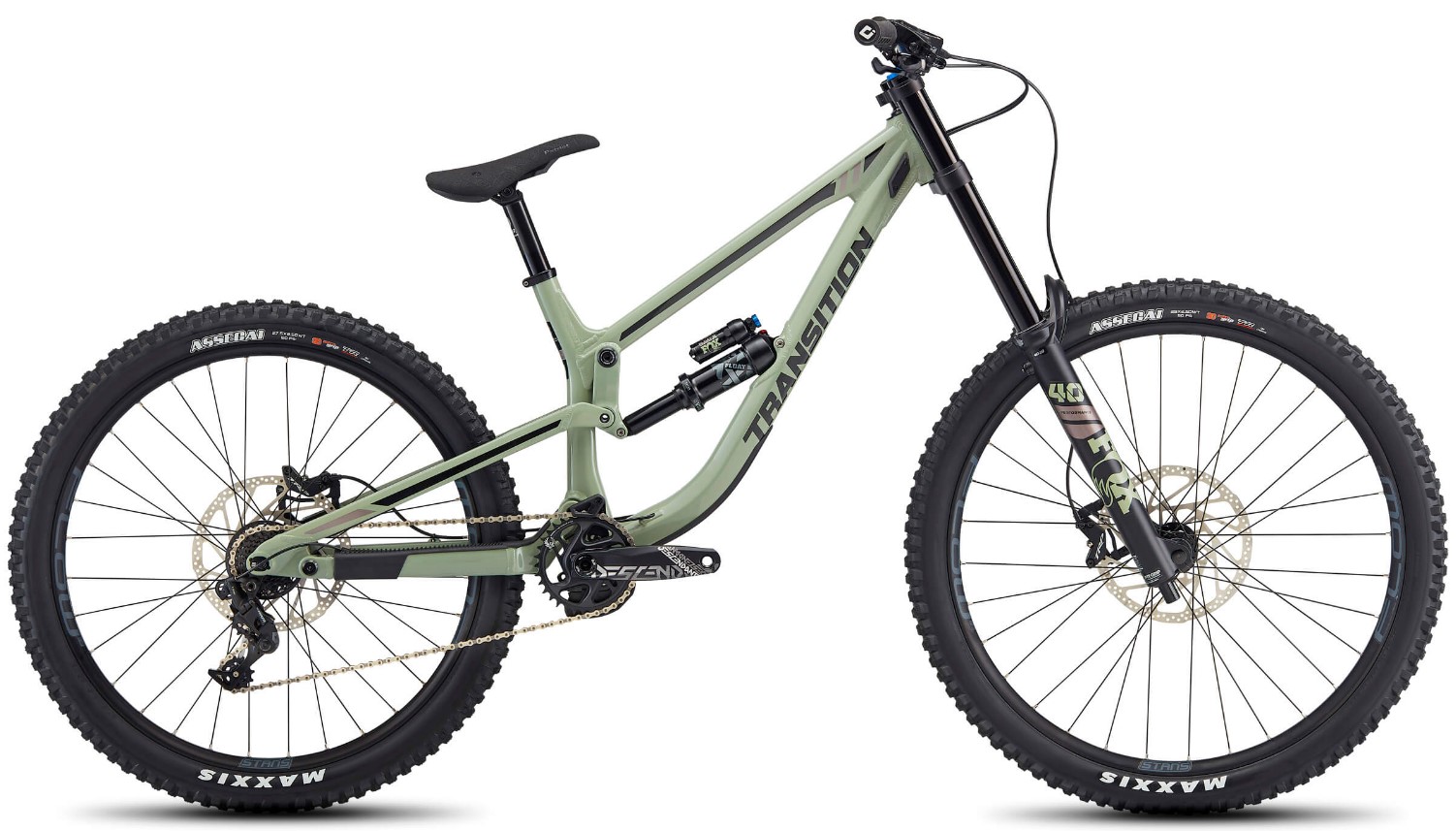

2022 TRANSITION TR11 V3 Alloy
| MODEL VERSION YEARS | 2022-25 |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 205 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 25.0 x 8.0 |
| LINKAGE | LINKAGE DRIVEN FOUR BAR |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 2.95 |
| SAG POINT LEVERAGE | 3.0 |
| ENDING LEVERAGE | 1.98 |
| PROGRESSION % | 32.9 |

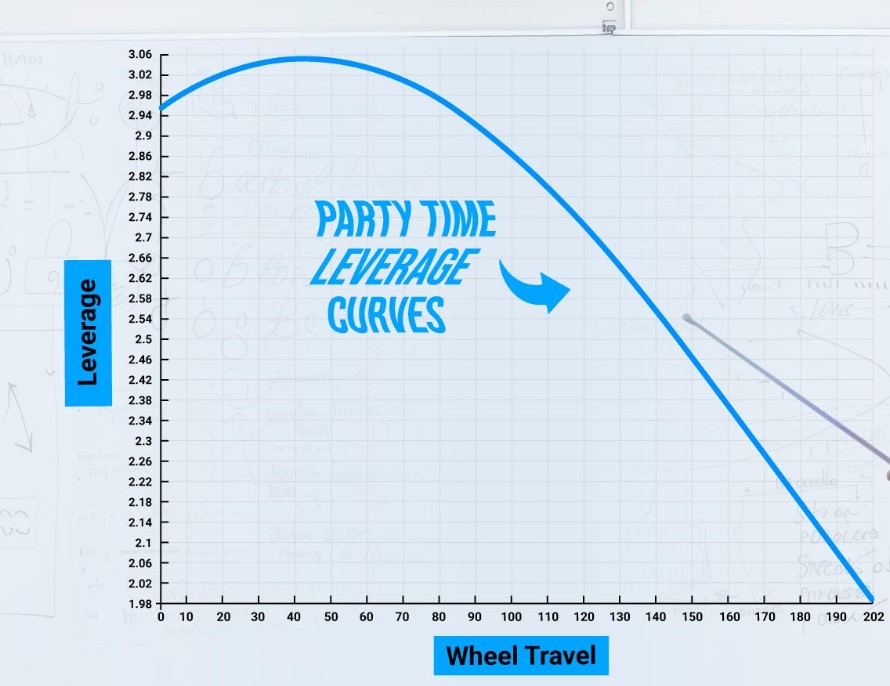

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE RP |
| OEM SHOCK | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 62.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | FOX 40 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,40,45,50, |

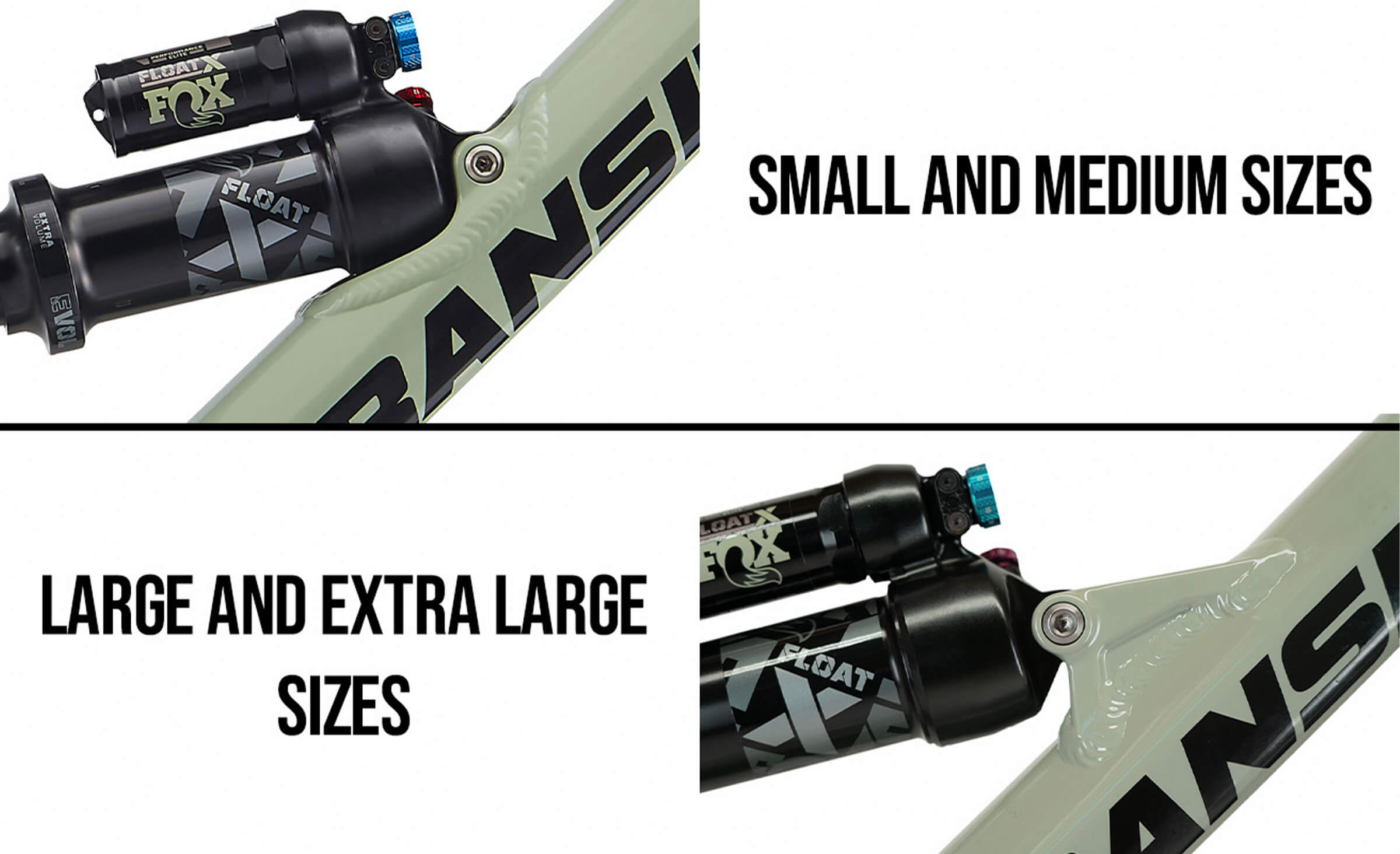

| COMMENTS | Comes with air shock, small and med not compatible with Fox X2 |
| COMMENTS | data for leverage from imperical |
