All data is our best estimate based on the information provided online

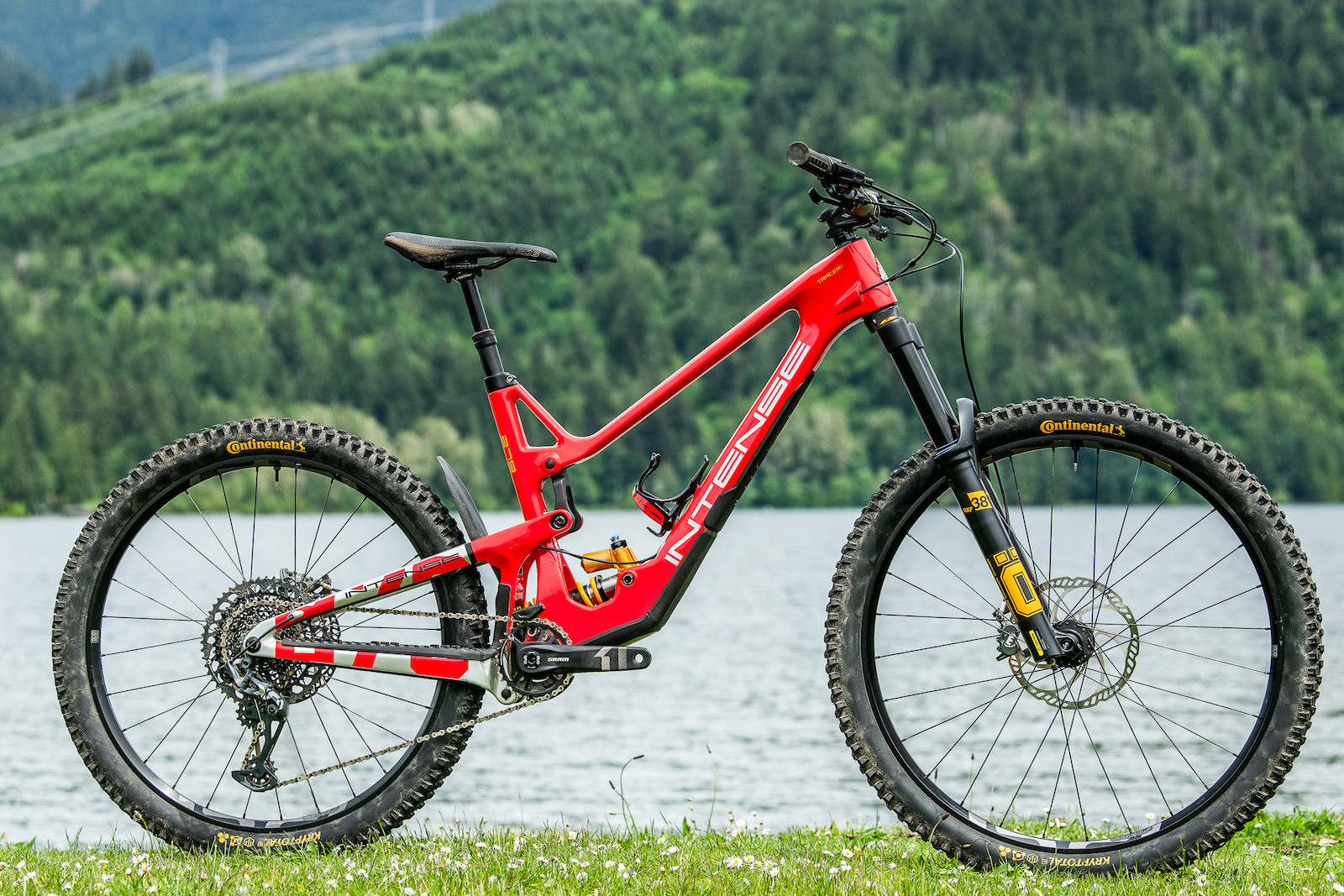

2022 INTENSE Tracer 279
| MODEL VERSION YEARS | 2022-2023 |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 37.5 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 170 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.25 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 30.8 |

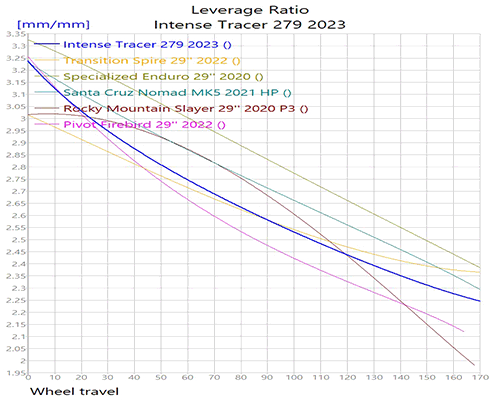

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | Ohlins |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,50,55, |
| COMMENTS | 64.5 adjustment, Reservoir may need to be 3-5 mm shorter to clear seat post tunnel on small frames, with cap removed just clears. |
| COMMENTS |
