2022 SPECIALIZED Turbo Levo Carbon

MODEL VERSION YEARS 2022-
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 50
SHOCK SIZE 210 x 55
TRAVEL MM 150
UPPER REDUCER 20.0 x 8.0
LOWER REDUCER 13.90 x 12.7
LINKAGE YOKE HORST LINK (PROGRESSIVE)
AVERAGE LEVERAGE 2.73
STARTING LEVERAGE 3.09
SAG POINT LEVERAGE 2.85
ENDING LEVERAGE 2.41
PROGRESSION % 22.0

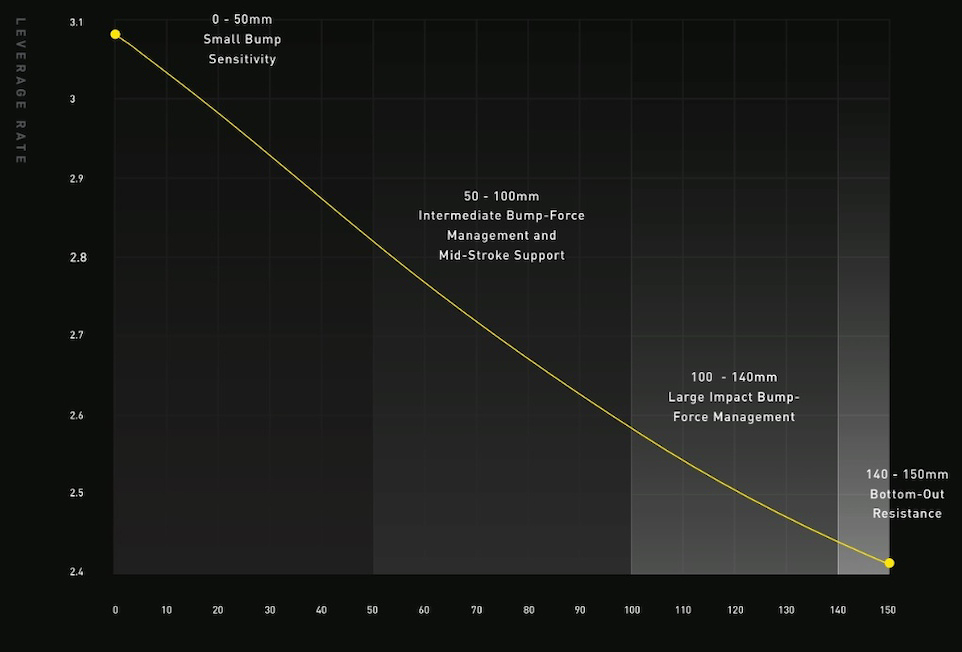

LEVERAGE CURVE PL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR
SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) 450,550,600,650,700,750,
HEAD TUBE ANGLE 64.5
RECOMMENDED FORK TRAVEL 160
OEM FORK FOX 36 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING FOX 38 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) 40,45,50,55,60,65,
COMMENTS Needs chrome steel shaft upgrade, Maximum rider weight 260 lbs, gen 3
COMMENTS 2022-2023, Horst Pivot Flip chip, 1/2 inch flanged reducers, send 1/2 x 1/2 DU
