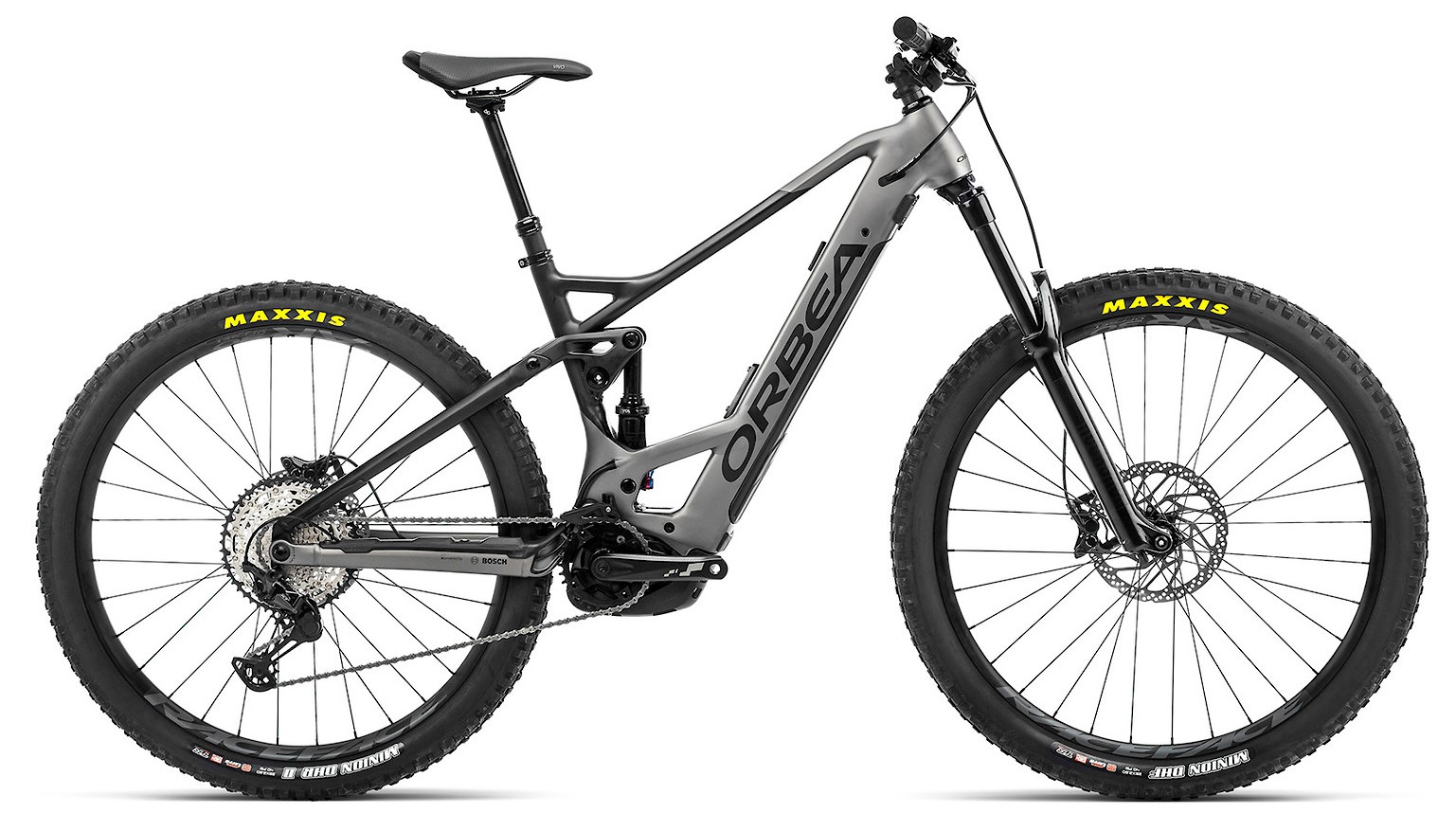

2022 ORBEA Wild Cascade
| MODEL VERSION YEARS | 2021-2022 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 52 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 165 |
| UPPER REDUCER | None |
| LOWER REDUCER | Trunnion |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 3.2 |
| SAG POINT LEVERAGE | 2.70 |
| ENDING LEVERAGE | 2.12 |
| PROGRESSION % | 33.75 |

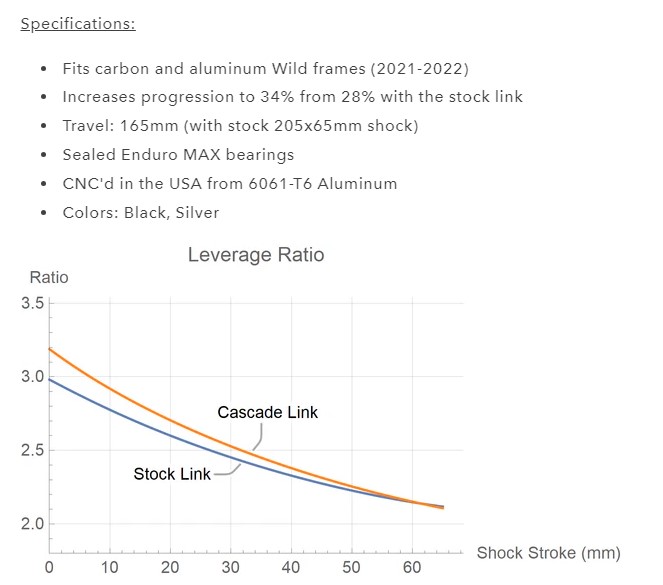

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,400,450,500,550,600, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | ROCKSHOX 35 SILVER FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Cascade components option 28 to 34 % |
| COMMENTS |
