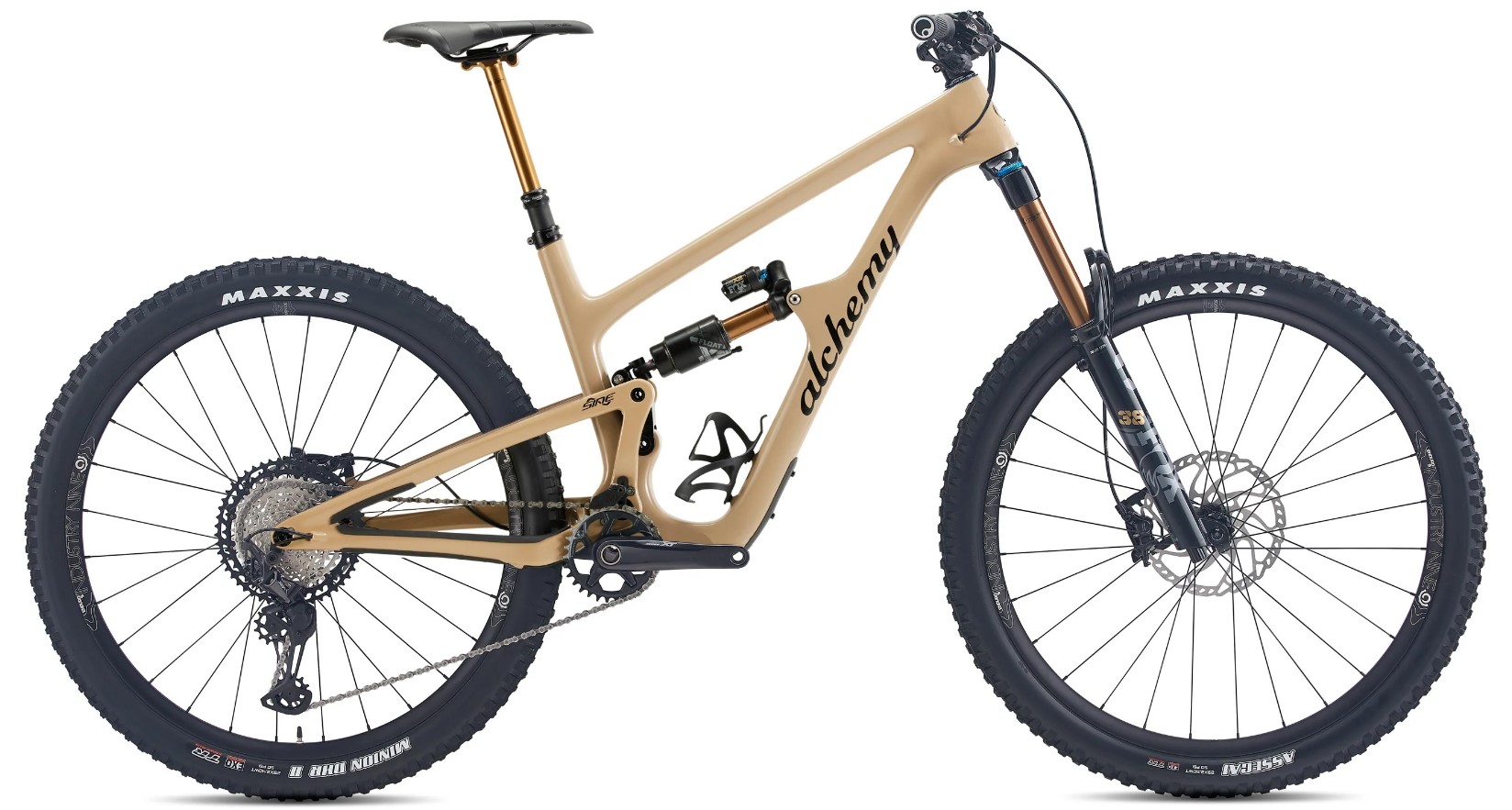

2023 ALCHEMY Arktos 150

MODEL VERSION YEARS
TIRE SIZE 29 Front, 29 or 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 32
SHOCK SIZE 230 x 60
TRAVEL MM 150
UPPER REDUCER
LOWER REDUCER
LINKAGE SINGLE PIVOT LINKAGE DRIVEN
AVERAGE LEVERAGE 2.50
STARTING LEVERAGE 2.4
SAG POINT LEVERAGE 2.6
ENDING LEVERAGE 2.3
PROGRESSION % 4.17

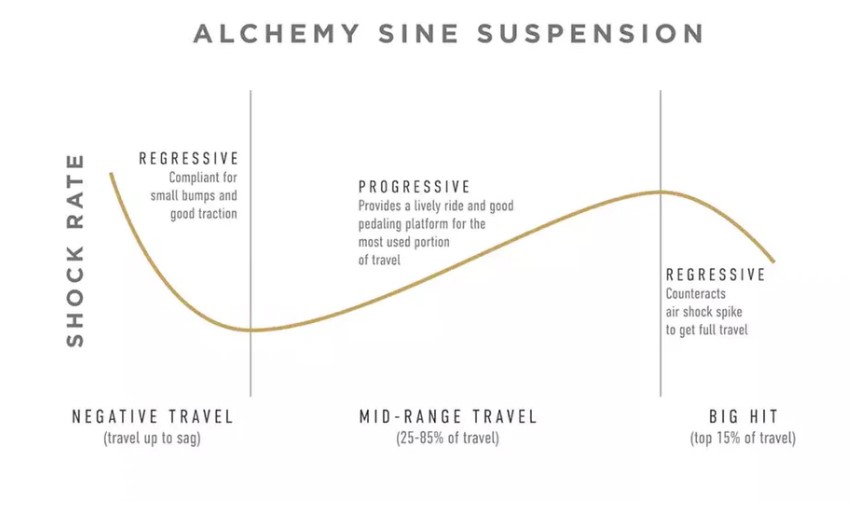

LEVERAGE CURVE RPR

Installed PicturesInstalled Views

SHOCK TUNE RPR
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION FOX FLOAT X

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 Not Coil Compatible
HEAD TUBE ANGLE 63.75
RECOMMENDED FORK TRAVEL 170
OEM FORK FOX 38 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING FOX 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,40,45,50,55,
COMMENTS Mullet options for 150 and 135 versions, Transform to 140, 135 or 120 mm Kits
COMMENTS Best estimate for leverage/progression
