Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

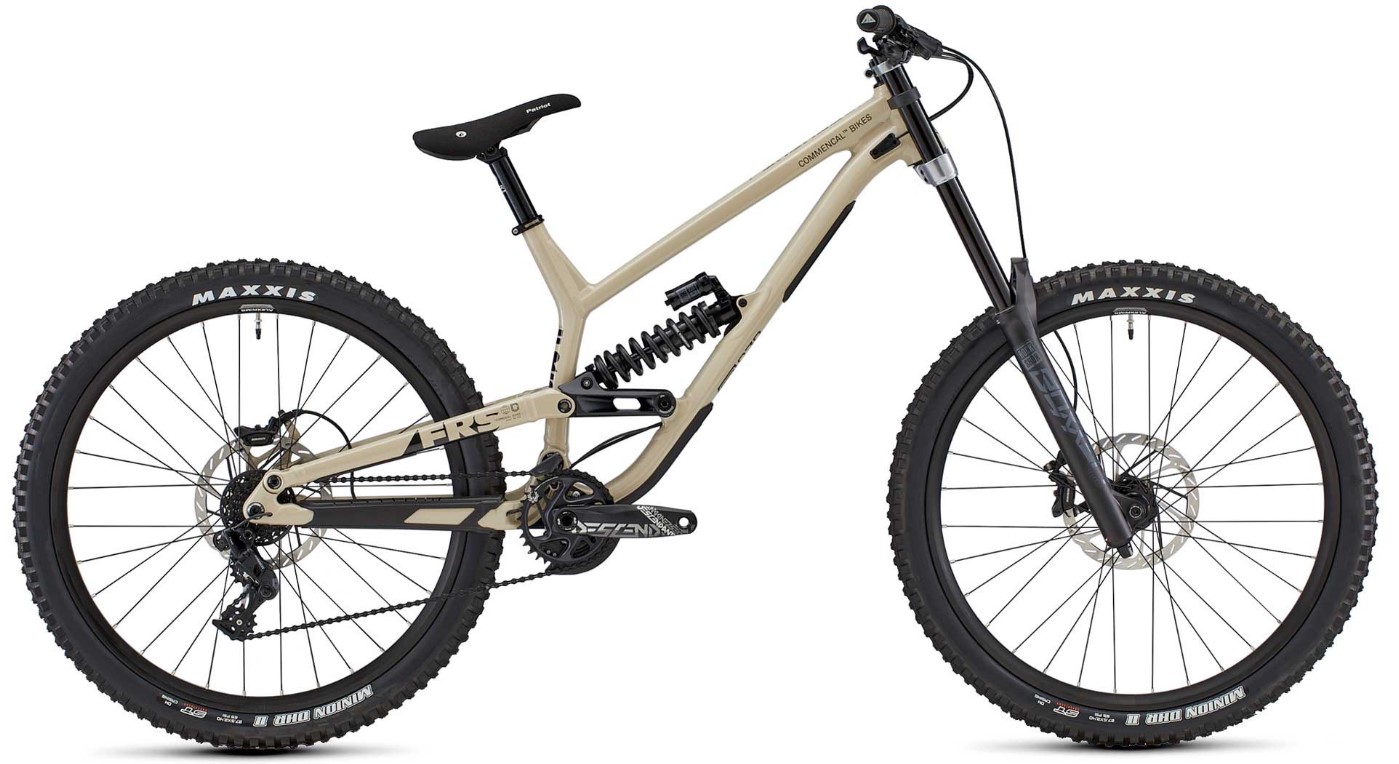

2023 COMMENCAL FRS
| MODEL VERSION YEARS | 2022- |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 37 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 200 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 10.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 3.0 |
| ENDING LEVERAGE | 2.2 |
| PROGRESSION % | 37.1 |
| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| OEM SHOCK | Ohlins TTX22M COIL |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,500, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | FOX 40 FLOAT ROCKSHOX BOXXER ULTIMATE |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | |
| COMMENTS |
