2023 VAMPIRE Fastarossa 190
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 190 |
| UPPER REDUCER | 40.0 x 8.0 |
| LOWER REDUCER | 25.0 x 8.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.92 |
| STARTING LEVERAGE | 3.41 |
| SAG POINT LEVERAGE | 3.10 |
| ENDING LEVERAGE | 2.54 |
| PROGRESSION % | 25.5 |

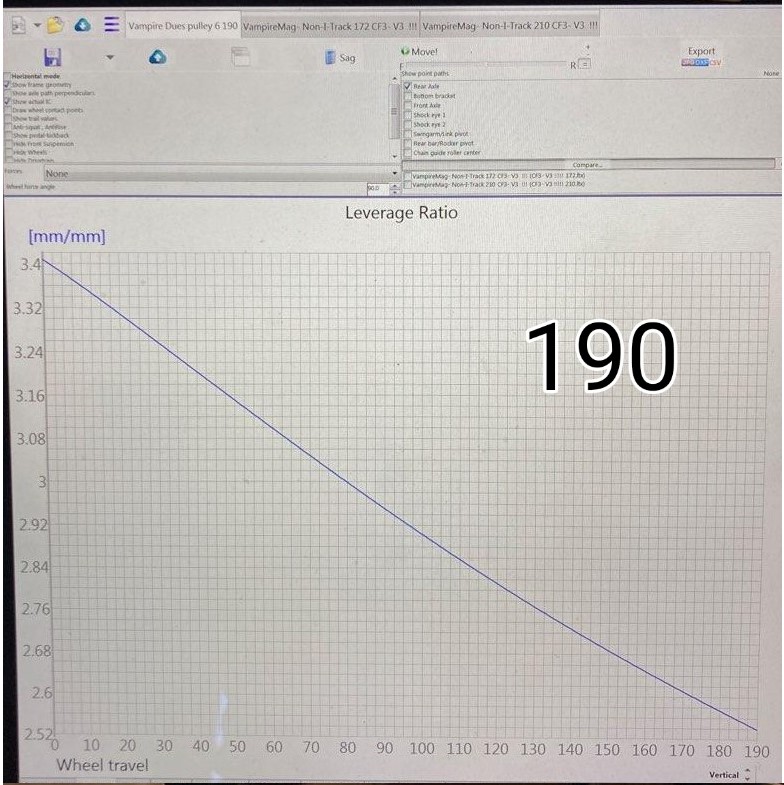

| LEVERAGE CURVE | HPL
|

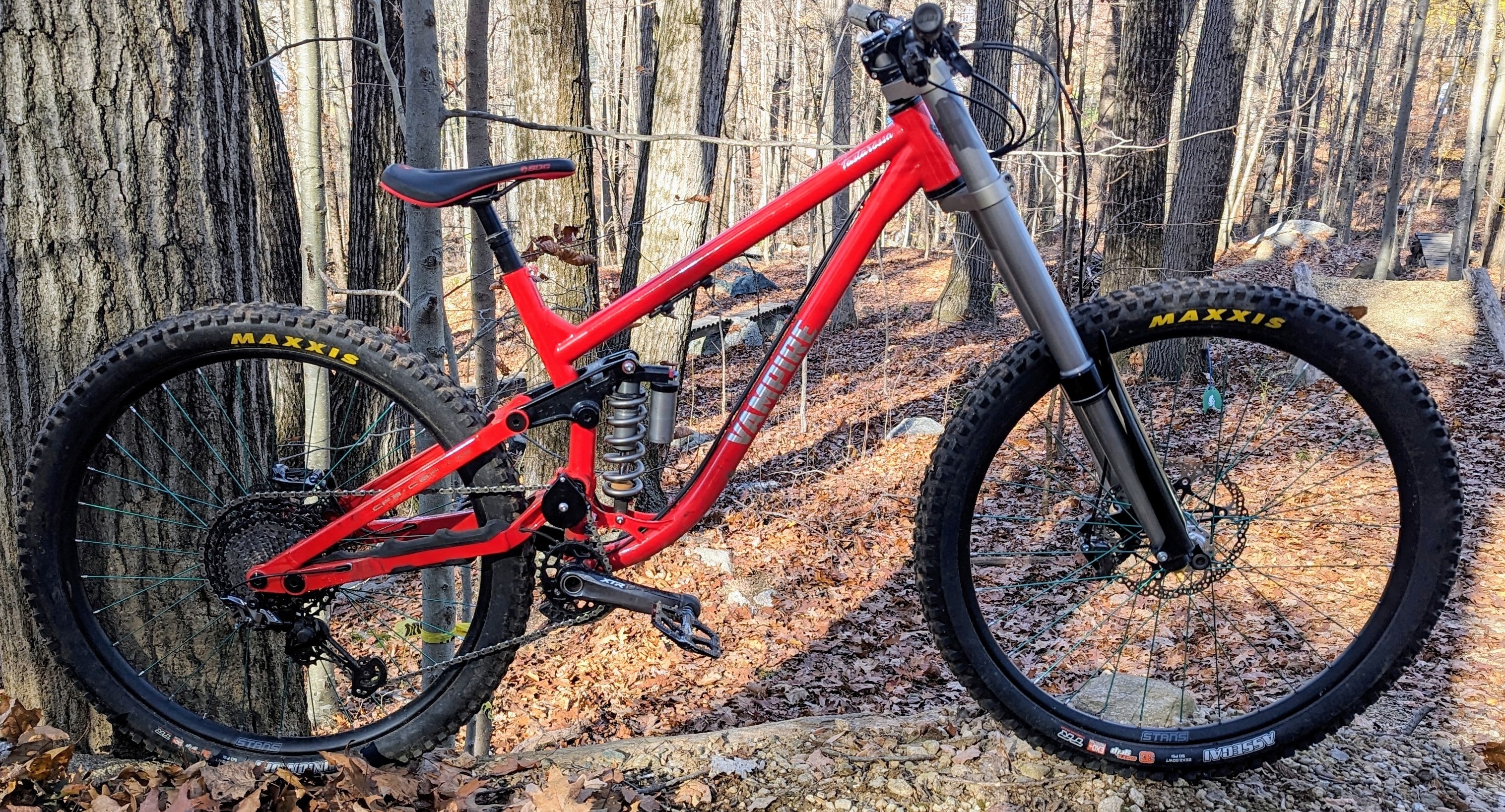

| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 64 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | CHRIS CANFIELD, use spool 40 x 8 |
| COMMENTS |
